Truth 15.30 Traditional Split Arm Operator, Straight 4-1/2" Link, Left Hand

Part Number: 15.30-TRA-LH
Price: $20.75

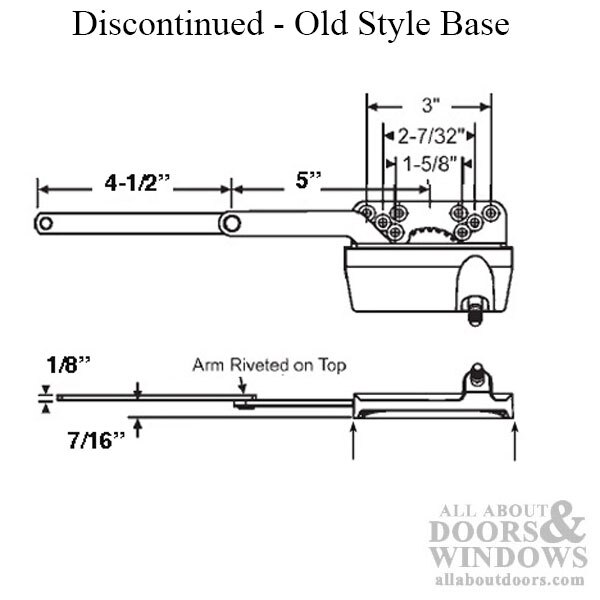

Truth 15.30 Traditional Split Arm Operator has been discontinued and limited to existing inventory.

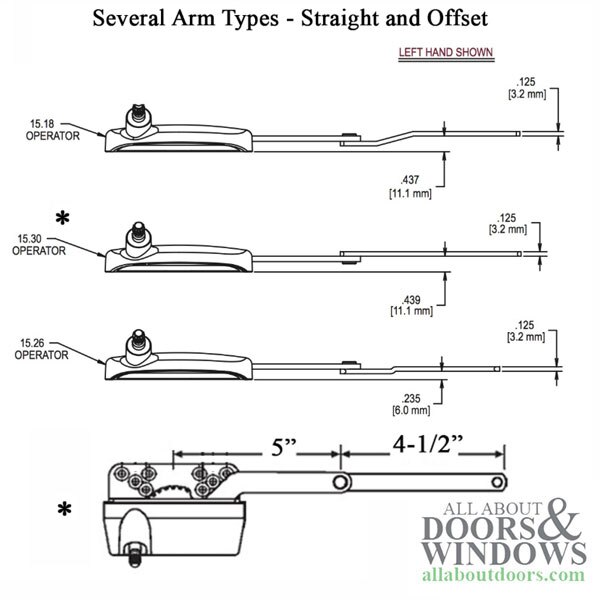

The 15.30 Ellipse with a softer more modern look is the replacement - see additional images
Used by Weathershield on their Visions 2000 vinyl casement window and many other companies

Application: Casement windows
Operator Type: Split Arm
Link Length: 5 inch
Rivet to Stud post Hole: 4-1/2 inch

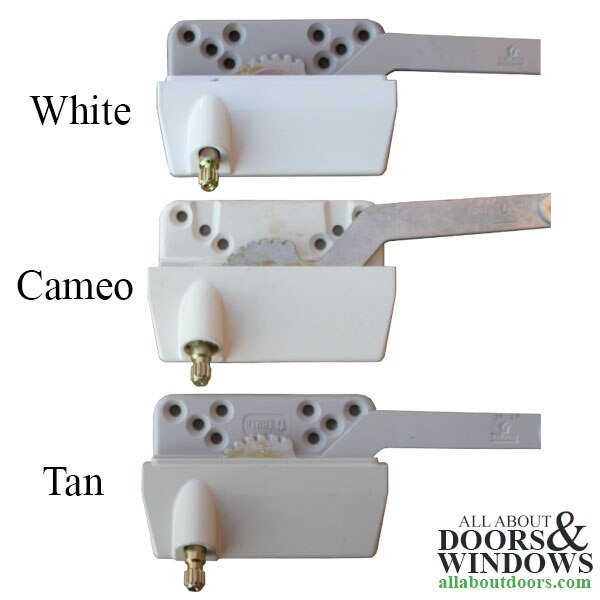

Color: Limited to existing shown
Handed: Yes, Left and Right handed as shown
Material: Zinc Die Cast Body with E-Gard or stainless steel arms

Sold Each, No screws or crank handle
Weather Shield Part Numbers
Standard Seacoast
White Left 972959 972976
White Right 972960 972977
Tan Left 972610 940009
Tan Right 972611 940010
Cameo Left 941331 941333
Cameo Right 941332 941334
