Truth 14.77 series Egress Casement window hinge & arm kit 2-9/32" opening- E-Gard® Steel
Amesbury Truth 14.77 Series concealed egress casement window hinge Kit. 2 stainless Steel tracks and 2 E-Gard® hinge arms, 1 left and 1 right ( upper - lower)
This Kit has the Adjustable Brass Stud post on Stainless Steel track
Application: Casement Windows, Egress Opening

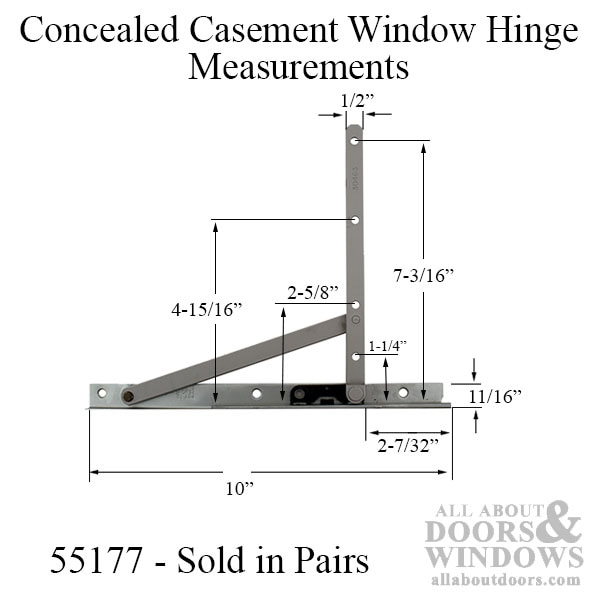

Hinge Opening: 2-9/32 inch (57..9mm) 2.281
Track Length: 10 inch
Track Type: Adjustable Brass Stud
Track Material: Stainless Steel

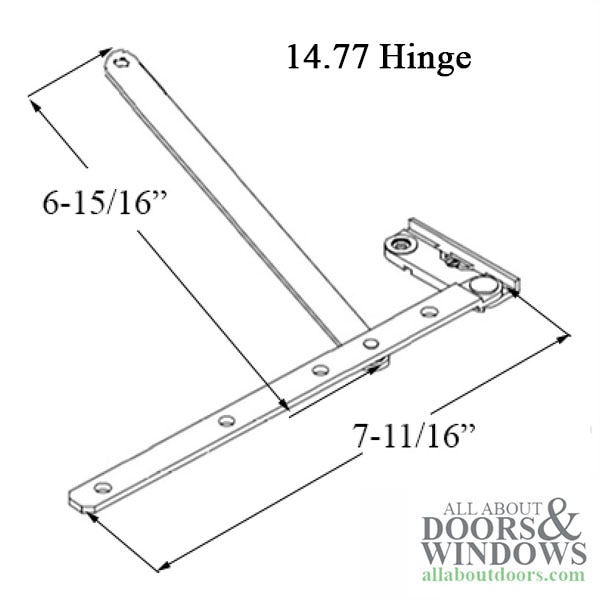

Hinge Arm: 7-11/16 inches Long Link, with Shoe
Hinge Linkage: 6-7/8 inches Short Link (detachable)
Short link Rivet to Hole: 6-1/2 inch
Arm Material: Steel, E-Gard® Corrosion Resistant Finish
Priced and sold in pairs - Upper and Lower
When purchased in pairs, you get a top and bottom hinges that can be used on windows opening to the left or the right.
Screws are NOT included, recommended size are #7 x 3/4 inch, stainless steel, Phillips Flat Head, Sheet Metal Screw. Actual screw will be determined by application and window material
Markings: Truth 14.77 hinge Part Numbers Long Arm Hinge 30463; Short Arm Hinge 30818 ( part numbers may vary or not shown). Tracks 40941 / 40942-A;
Additional Information:
* 14.77 E-Gard® and 14.93 Stainless Steel are the same size, different materials

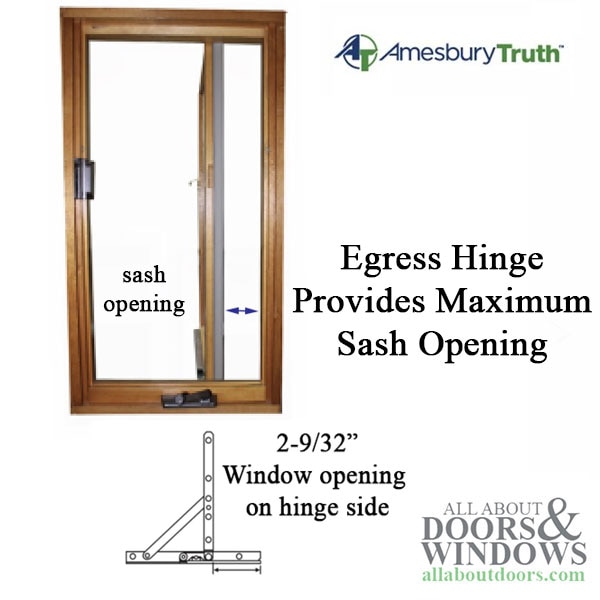

* Amesbury Truth ‘egress’ hardware essentially stays tucked in close to the jamb, with minimal ‘pivoting’ towards the center of the unit—thereby creating a greater net-opening width.
Egress hinge provides Approximately 2-5/8 inch wider opening to meet code requirements on Emergency Exit.
EGRESS INFO:
International Building Code advises that every bedroom must contain at least one egress window.
Basically, The operable portion of the window must be at least 24-inches high and at least 20-inches wide, with a net area at least 5.7 square feet, with an opening no higher than 44 inches from the floor. Check local codes for more information.
This Kit has the Adjustable Brass Stud post on Stainless Steel track
Application: Casement Windows, Egress Opening
Hinge Opening: 2-9/32 inch (57..9mm) 2.281
Track Length: 10 inch
Track Type: Adjustable Brass Stud
Track Material: Stainless Steel
Hinge Arm: 7-11/16 inches Long Link, with Shoe
Hinge Linkage: 6-7/8 inches Short Link (detachable)
Short link Rivet to Hole: 6-1/2 inch
Arm Material: Steel, E-Gard® Corrosion Resistant Finish
Priced and sold in pairs - Upper and Lower
When purchased in pairs, you get a top and bottom hinges that can be used on windows opening to the left or the right.
Screws are NOT included, recommended size are #7 x 3/4 inch, stainless steel, Phillips Flat Head, Sheet Metal Screw. Actual screw will be determined by application and window material
Markings: Truth 14.77 hinge Part Numbers Long Arm Hinge 30463; Short Arm Hinge 30818 ( part numbers may vary or not shown). Tracks 40941 / 40942-A;
Additional Information:
* 14.77 E-Gard® and 14.93 Stainless Steel are the same size, different materials
* Amesbury Truth ‘egress’ hardware essentially stays tucked in close to the jamb, with minimal ‘pivoting’ towards the center of the unit—thereby creating a greater net-opening width.
Egress hinge provides Approximately 2-5/8 inch wider opening to meet code requirements on Emergency Exit.
EGRESS INFO:
International Building Code advises that every bedroom must contain at least one egress window.
Basically, The operable portion of the window must be at least 24-inches high and at least 20-inches wide, with a net area at least 5.7 square feet, with an opening no higher than 44 inches from the floor. Check local codes for more information.
