Truth 11 inch Single Arm Casement Operator, Left Hand, Face Mount - Choose Color
Truth single arm face mount 11 inch casement operator.

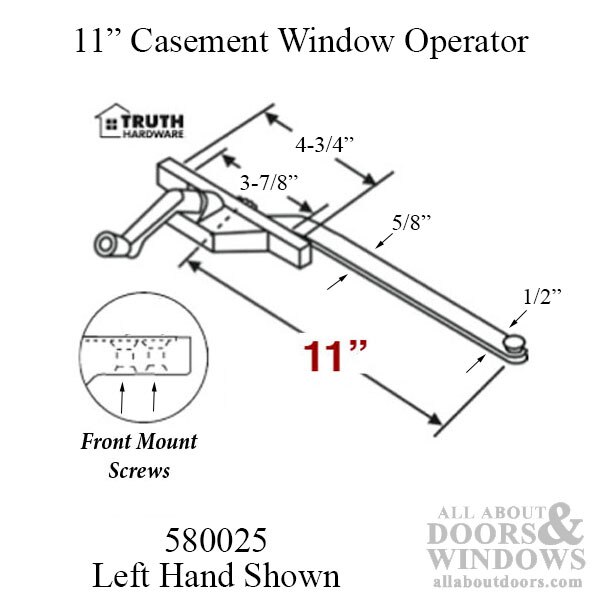

Mounting: Face Mount Screws
Mounting Screw Holes: 3-7/8 & 4-3/4
Operator Arm: Powder coated
Arm Length: 11 inch , from center of operator to center of roller
Arm Width: tapered from 5/8" at base to 1/2" at roller
Roller: Stainless Steel
Roller Diameter: 9/16 inch
Handed: Left Hand as shown
Note: Truth Series single arm operators are handed by the hinge side when viewed from the inside (commercially handed).
For a Right Hand operator please see 580026

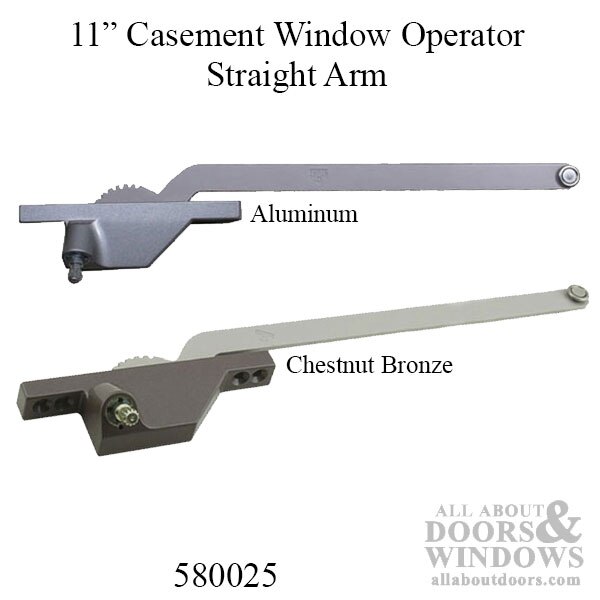

Color Options:
Aluminum
Chestnut Bronze
Does not include crank handle or installation hardware.
Priced and sold each.
Mounting: Face Mount Screws
Mounting Screw Holes: 3-7/8 & 4-3/4
Operator Arm: Powder coated
Arm Length: 11 inch , from center of operator to center of roller
Arm Width: tapered from 5/8" at base to 1/2" at roller
Roller: Stainless Steel
Roller Diameter: 9/16 inch
Handed: Left Hand as shown
Note: Truth Series single arm operators are handed by the hinge side when viewed from the inside (commercially handed).
For a Right Hand operator please see 580026
Color Options:
Aluminum
Chestnut Bronze
Does not include crank handle or installation hardware.
Priced and sold each.
This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: 36-222-7, 36-222-1, 36-222-8
Strybuc Industries: 36-222-7, 36-222-1, 36-222-8
