Tripact 750mm Extension with Tongue Locking Point - Black

Part Number: 6-33279-05-0-BL
See Description

Discontinued and no longer available

This item has been discontinued. Replace with 6-33279-07-0-BL

GU Europa 750mm Tripact Extension with Tongue locking Point

This extensions adds 1 additional locking point ( tongue ) for taller doors.

This extension is a stand alone, additional extensions can not be added to the top ( No Serrated Teeth)

If you need the tongue higher on the door you will need a plain extension and then add the additional Tongue.

Used with Tripact Europa SeriesKey below Lever


Measurements in inches:

Faceplate width: 5/8 inch ( 16mm)

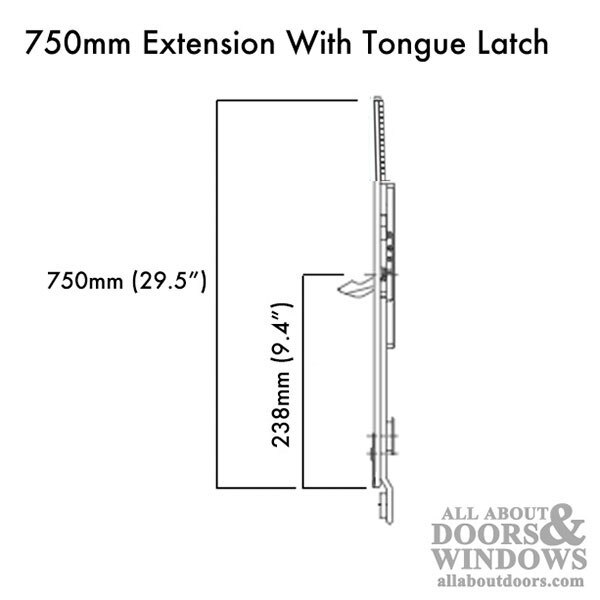

Overall Faceplate Length:29-1/2 inch (750mm)

Top Tongue position:9 inches (229mm) frombottom of faceplate

Color / Finish: Black


Adjustable Height by cutting top extension

Minimum Distance from first tongue 16 inches

Maximum Distance from first tongue 22-3/8 inches

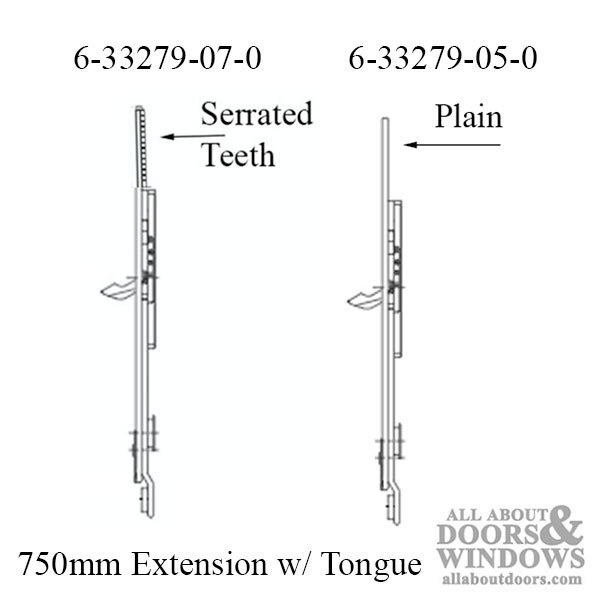

Note: Extensions come plain or with locking point for Roller, Tongue or Hook versions


Related Parts:

G-16790-05-0-1R500mm Extension NO Lock Point - Standard

6-33279-05-0-1 750mm Extension w/ locking point

6-33279-07-0 750mm Extension w/ locking point & Serrated Teeth
