Trilennium Eclipse Handle with Grip, Right Hand, Schlage Key - Choose Color

Part Number: 499130100-SC1
Price:$430.00 to $685.00
Trilennium 3000 Series Grip Handle for active Multi-Point Lock
Used by W&F, Peachtree IPD, Pella Entry Doors and others

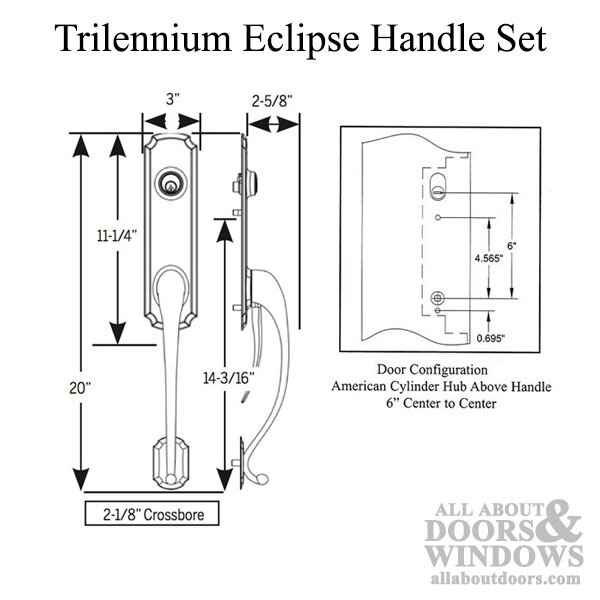

Door Cross bore: Standard 2-1/8 inch
Handle to cylinder PZ: 6 inch
Handed: YES, Right Hand, as shown
They are handed because of lever and torque body inside lock
Keyway:  Schlage 5 pin cylinder, SC1 key
Escutcheon Plate Width: 2-7/16 inch
Escutcheon Plate length: 10-1/4 inch
Door Thickness: 1-3/4 inch, optional 2-1/4 inch Special Order

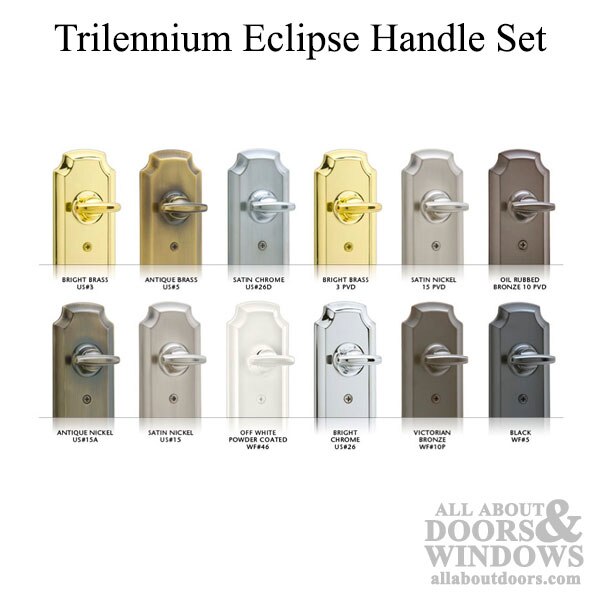

Color / Finish:
Brushed/Satin Nickel
Victorian Bronze
Black
Bright Brass
Lifetime Brushed/Satin Nickel (discontinued, limited to existing inventory)

Please note that these handlesets are special order and cannot be returned or exchanged.
Some handlesets may take 6-8 weeks for delivery.


NOTE:
Lock cross bore on doors vary, some are 1-11/16, others 2-1/8 inch.
Pella Standard entry door with Trilennium locks used 2-1/8 inch Cross Bore
Peachtree IPD used 1-11/16 Cross Bore
Pinnacle, Eclipse & Grip Hardware will cover all bores
Emtek & Horizon hardware is 2 inches wide and covers optional 1-11/16 Crossbore
