Tongue / Shootbolt 45/92 Replacement Kit, 36-7/8 HH, 93-1/4" door
HOPPE HLS9000 5 point lock, tongue with shootbolt, Multipoint lock for 93-1/4" tall door.
This is a Manual Tongue Shootbolt Version Replacement for the old Hoppe or Fuhr Automatic or
manual Tongue Multipoint Lock with a Backset of 45mm.
The Replacement lock features 2 Tongues Latch, 2 Shootbolts and a Deadbolt.
The Shootbolt is located at the extreme top and bottom of the lock.
Note: This 2 piece lock can NOT be trimmed for different door heights, will only fit 93-1/4 inch doors

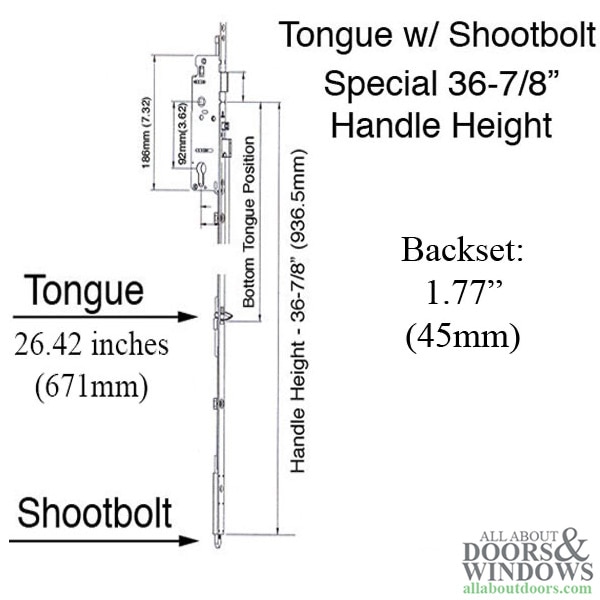

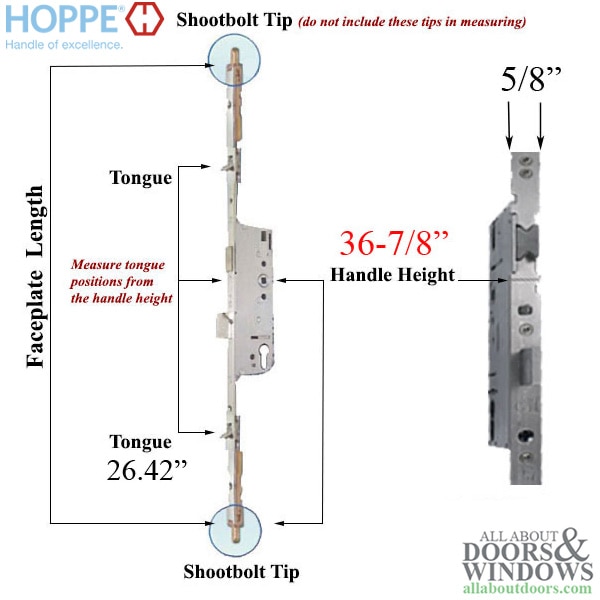

The Tongue Latches relocated 26.42 inches below & 37.20 above the center of the Handle .
Please check your measurements carefully to insure you have the correct replacement.

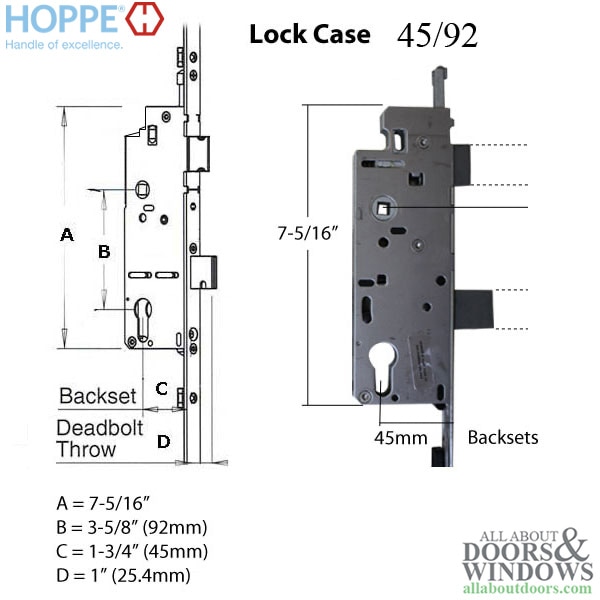

Lock Measurements
Backset: 1-3/4 inches (45 mm)
Faceplate Width: 5/8" (16 mm)
Deadbolt Throw: 1 inch (24.5 mm)
Handle to Cylinder Spacing (PZ): 3-5/8 inches (92 mm)
Handle Height: 36-7/8 inches
Bottom Tongue position: 26.42 inches (671 mm)
Top Tongue position: 37.20 inches (945 mm)
Overall Length: 93-1/4 inches tall
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Video: How to Connect a Top Extension to HOPPE Lockbox
Article: How to Trim HOPPE Multipoint Locks
Note:
This 2 piece lock can NOT be trimmed for different door heights, will only fit 93-1/4 inch doors
This is a Manual Tongue Shootbolt Version Replacement for the old Hoppe or Fuhr Automatic or
manual Tongue Multipoint Lock with a Backset of 45mm.
The Replacement lock features 2 Tongues Latch, 2 Shootbolts and a Deadbolt.
The Shootbolt is located at the extreme top and bottom of the lock.
Note: This 2 piece lock can NOT be trimmed for different door heights, will only fit 93-1/4 inch doors
The Tongue Latches relocated 26.42 inches below & 37.20 above the center of the Handle .
Please check your measurements carefully to insure you have the correct replacement.
Lock Measurements
Backset: 1-3/4 inches (45 mm)
Faceplate Width: 5/8" (16 mm)
Deadbolt Throw: 1 inch (24.5 mm)
Handle to Cylinder Spacing (PZ): 3-5/8 inches (92 mm)
Handle Height: 36-7/8 inches
Bottom Tongue position: 26.42 inches (671 mm)
Top Tongue position: 37.20 inches (945 mm)
Overall Length: 93-1/4 inches tall
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Video: How to Connect a Top Extension to HOPPE Lockbox
Article: How to Trim HOPPE Multipoint Locks
Note:
This 2 piece lock can NOT be trimmed for different door heights, will only fit 93-1/4 inch doors
