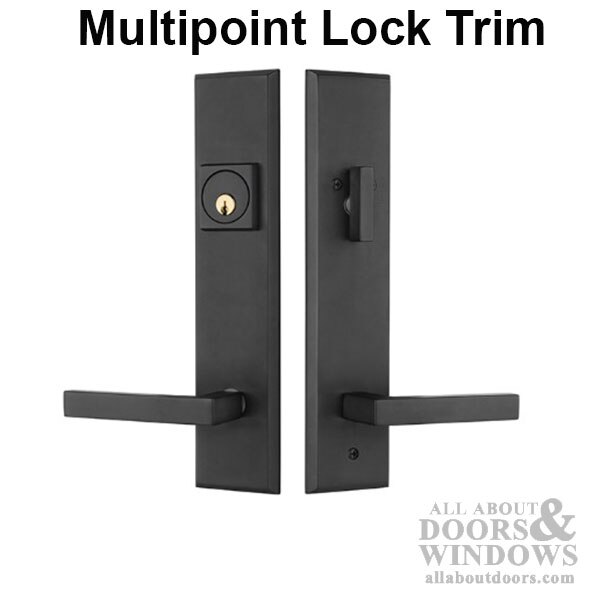

Times Active Keyed MPL Trim, Delta Lever - Oil Rubbed Bronze

Part Number: 14525
Price: $290.25

Times lever for Triple Latch multipoint lock hardware
Premium multipoint handleset for use with triple latch, deadlocking tongue and shootbolt bolt multipoint locks

Application: Residential exterior door with Rockwell multipoint lock.
Function: Active Keyed door

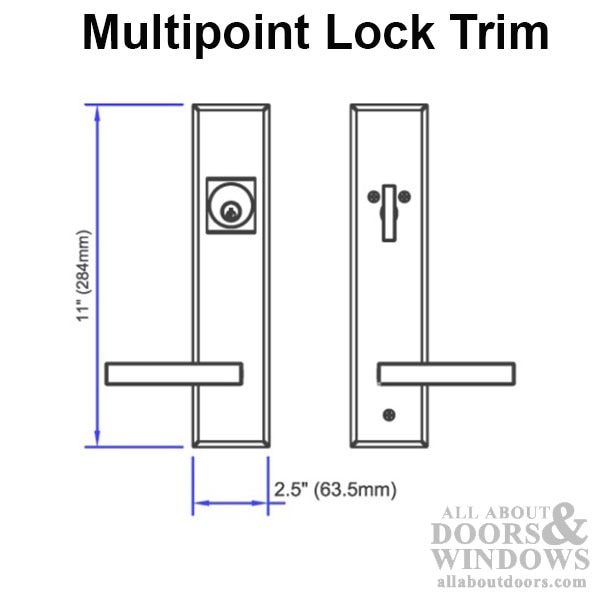

Plate Width: 2-Modern escutcheon plates
Lever Style: Straight Lever design
Material: solid forged brass

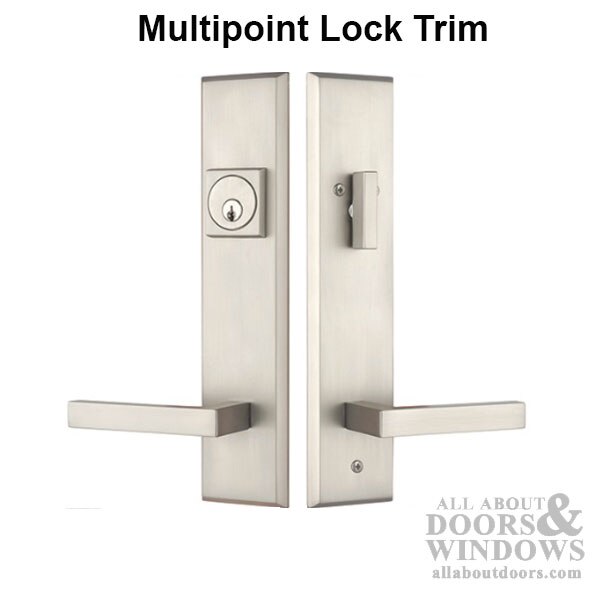

Finish: Antique Black ( similar to Oil Rubbed Bronze) or Satin Nickel

Bore Application: 5-1/2 inch, center of holes for Passage and Deadbolt
Cross Bore: 2-1/8\" Standard
Door Thickness: 1-3/4 inch
Lock Handle Hub to Cylinder: 5-1/4 inch
Spindle Length: 4-5/16 inch
Keyway: Schlage SC1, 5 pin
Keys: 2 with Large Bow head

Strike Plates ordered Separately ( 1-3/4 x 3-1/2\" length) Need 4 on 8\' door

Note:
Key cylinder hole on deadbolt is not in the center of the rosettes, it is offset from the center of the rosette by _ inch. This is the reason they measure 5-1/4 inch but they are made to fit a 5-1/2 Center to Center double bore on the door.
