Steel entry door lite with plastic frame, surround with insulated double pane glass.
Replace existing plastic surround that may have cracked or broken on your steel door.
Will also replace foggy glass where moisture has gotten between the panes.
Normally used on doors measuring 2-foot 8 inches (2-8) or wider.
Note: Does not fit Peachtree Avanti steel doors.
The inside and outside frames are screwed together from inside.
Door Thickness: 1-3/4 inch
Frame Material: Plastic, PVC

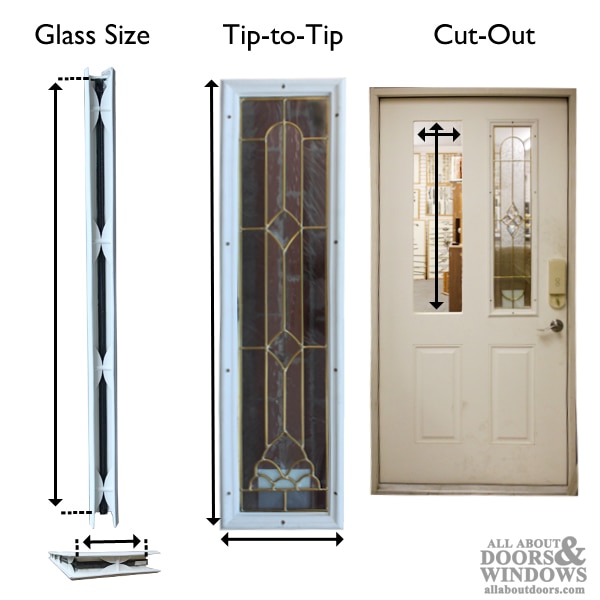

Actual Door Glass Size: 22 X 64

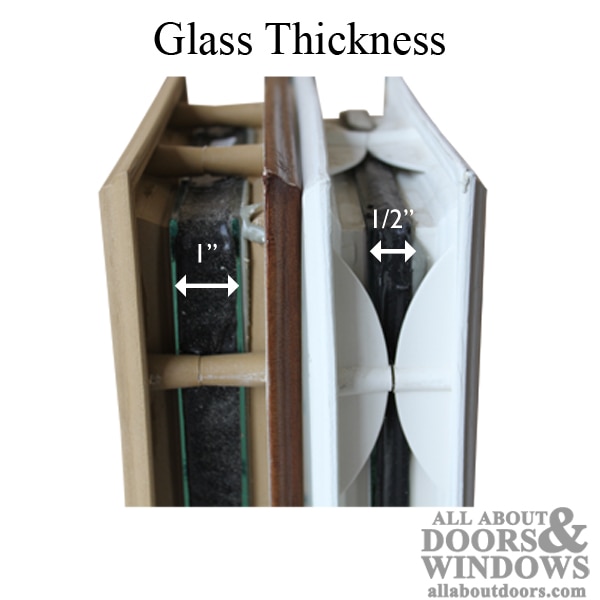

Insulated Glass Overall Thickness: 1/2 inch
Door Cut out Hole: 23 X 65
Tip-to-Tip frame Dimensions: 23-7/8 x 65-13/16
Internal Grid Width: 13/16 inch wide
Internal Grid Shape: Flat
Internal Grid Material: Aluminum
Grid Color: White
Read our articles: Basic info on ordering lites if you don't understand the above information
How to replace surrounds in an entry door or sidelite (video
NOTE: Does NOT fit Peachtree Avanti Steel DoorOnce received, double-check that the lite you've ordered fits in your door or wall before painting or staining. Items cannot be returned unless in original un-painted, un-stained condition with all original screws in package.
