Therma-Tru 22 x 64 for 1/2 or 1 inch glass; Surround Only No Glass, 1 Lite

Part Number: 330226420-KIT
Price: $139.95

Door Lite or Sidelite Surround Only (No glass)

Full lite: Plastic frame only

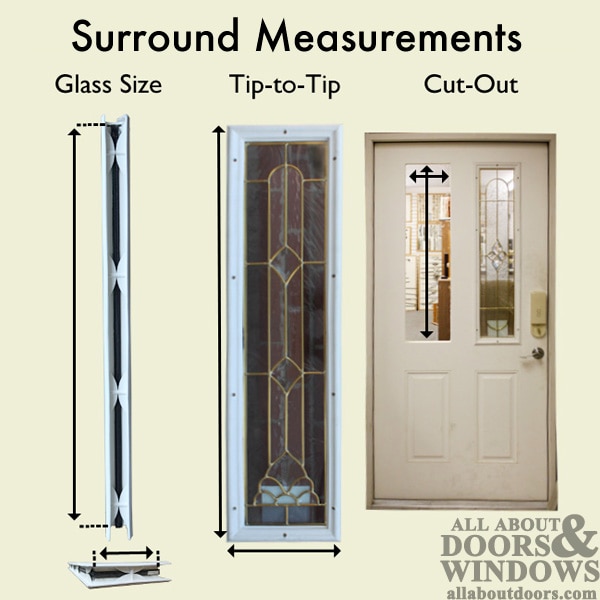

For Glass Size: 22 X 64

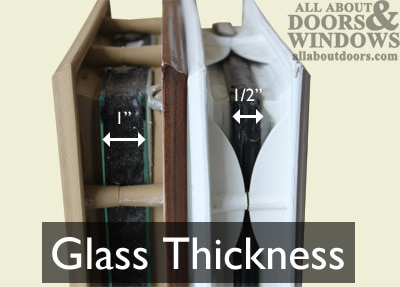

For Insulated Glass Thickness: 1/2 inch or 1 inch (choose below)
Door Cut out Hole: 23 X 65
Tip-to-Tip Rim Dimensions: 23-7/8 X 65-13/16
For doors measuring 2-foot 8 inches or 3 foot


Read our articles:
Basic info on ordering lites if you don't understand the above information
How to replace surrounds in an entry door or sidelite (video | article)


Once received, double-check that the lite you've ordered fits in your door or wall before painting or staining. Items cannot be returned unless in original un-painted, un-stained condition with all original screws in package.

Please Note:
An adhesive like butyl caulk will be needed for installation of this product (not provided). Please contact us if you have any questions about installation.
