Tandem 1-1/4 Nylon Roller assembly, Vinyl Patio Door

Part Number: 13262
Price: $29.95
Sold each, priced each

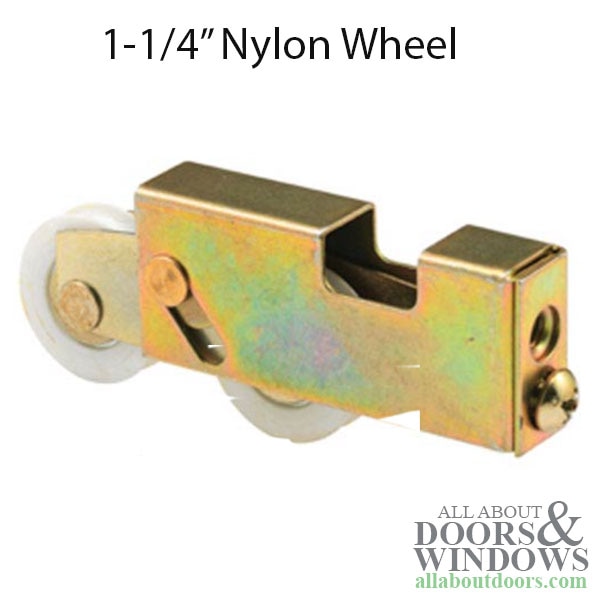

This Sliding Patio Door Roller has two 1-1/4 inch (31.8 millimeter) diameter Steel ball bearing rollers.

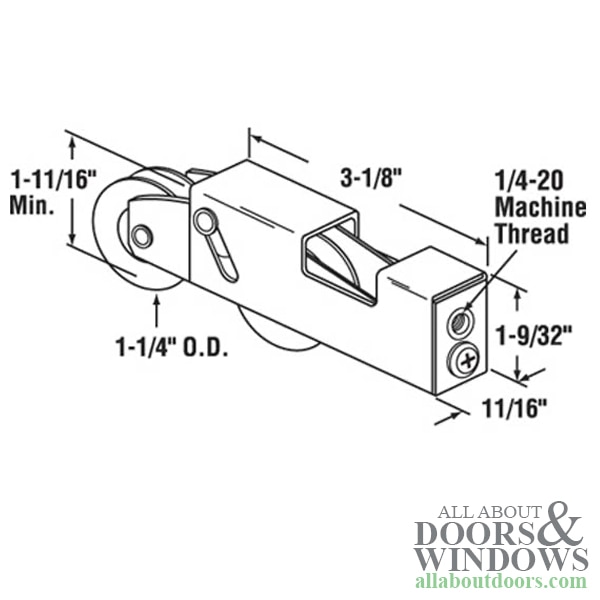

The steel housing assembly is 11/16 inches (17.5 millimeters) wide and 1-5/16 inch (33.3 millimeters) tall.
This unit is used by Phillips and other door manufacturers.

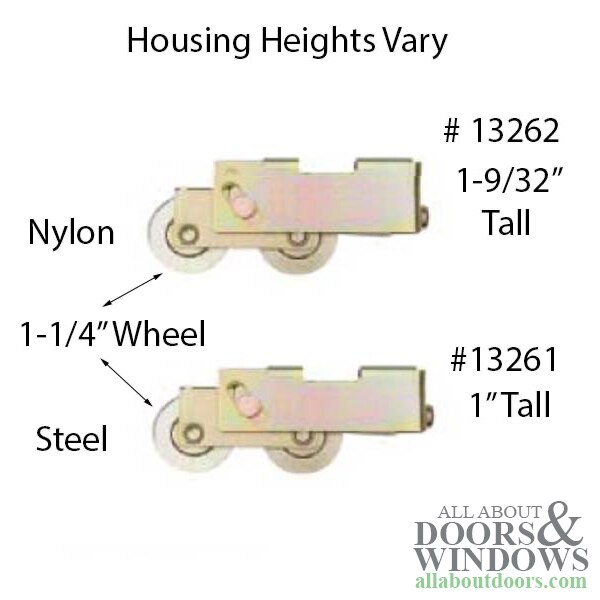

There is another roller ( 13261) with a 1 tall housing that looks like this one.

Housing Tab Style: Unique housing

Roller Diameter: 1-1/4-inch

Housing Height: 1-9/32 inch

Housing Width: 11/16 inch

Roller Edge Type: Concave

Roller Material: Nylon

Installation Screw: 1/4-20 Machine Thread

Includes one roller assembly.


Related items:
13261 - Keller 1 inch tall housing
13262 - Phillips 870 Marquee with 1-5/16 tall housing
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1920
