T-Slot Foam Filled bulb weatherstrip, .187 x .250 Diameter
Amesbury Foam-Tite Slide-in T-Slot Foam Filled weather seal .187 backing x.250 overall height
Used on doors and windows by Kolbe & Kolbe and others

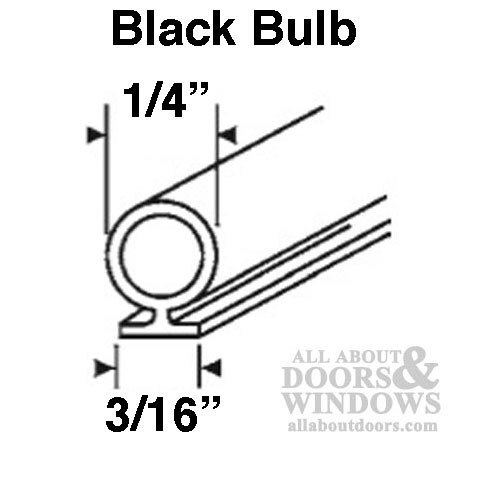

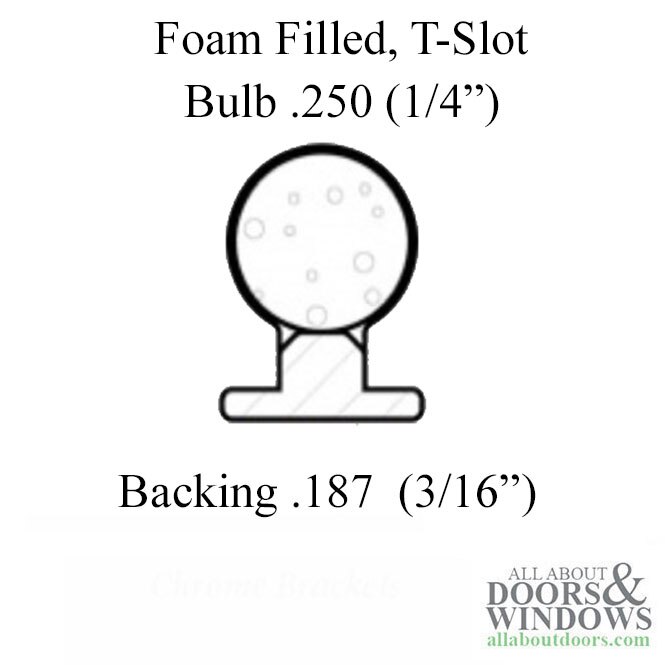

Weather Strip Specifications
Profile: 32001
Type: T-Slot, Foam Filled Bulb
Description: T-Slot Mount Seal - Foam-Tite Seal
Backing Width: .187 (4.7mm) 3/16 inch
Profile Height: .250 (6.35mm) or 1/4 inch bulb
Overall Size: .187 x .250 (4.7 x 7.62mm)
Bulb Diameter: .250 (6.35mm) 1/4 inch
Color: Black
Length: Sold by the foot
Special Features: Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite's products are CFC and Phthalate free.
Compression: Recommend Recommended = 25% Minimum = 10% Maximum = 50% Minimum Maximum
Used on doors and windows by Kolbe & Kolbe and others
Weather Strip Specifications
Profile: 32001
Type: T-Slot, Foam Filled Bulb
Description: T-Slot Mount Seal - Foam-Tite Seal
Backing Width: .187 (4.7mm) 3/16 inch
Profile Height: .250 (6.35mm) or 1/4 inch bulb
Overall Size: .187 x .250 (4.7 x 7.62mm)
Bulb Diameter: .250 (6.35mm) 1/4 inch
Color: Black
Length: Sold by the foot
Special Features: Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite's products are CFC and Phthalate free.
Compression: Recommend Recommended = 25% Minimum = 10% Maximum = 50% Minimum Maximum
