Sweep Latch, 2-1/16 x 7/16 Screw Holes, 1/8 cam, Single or Double Hung windows, RH

Sweep Latch, 2-1/16 x 7/16 Screw Holes, 1/8 cam, Single or Double Hung windows, RH

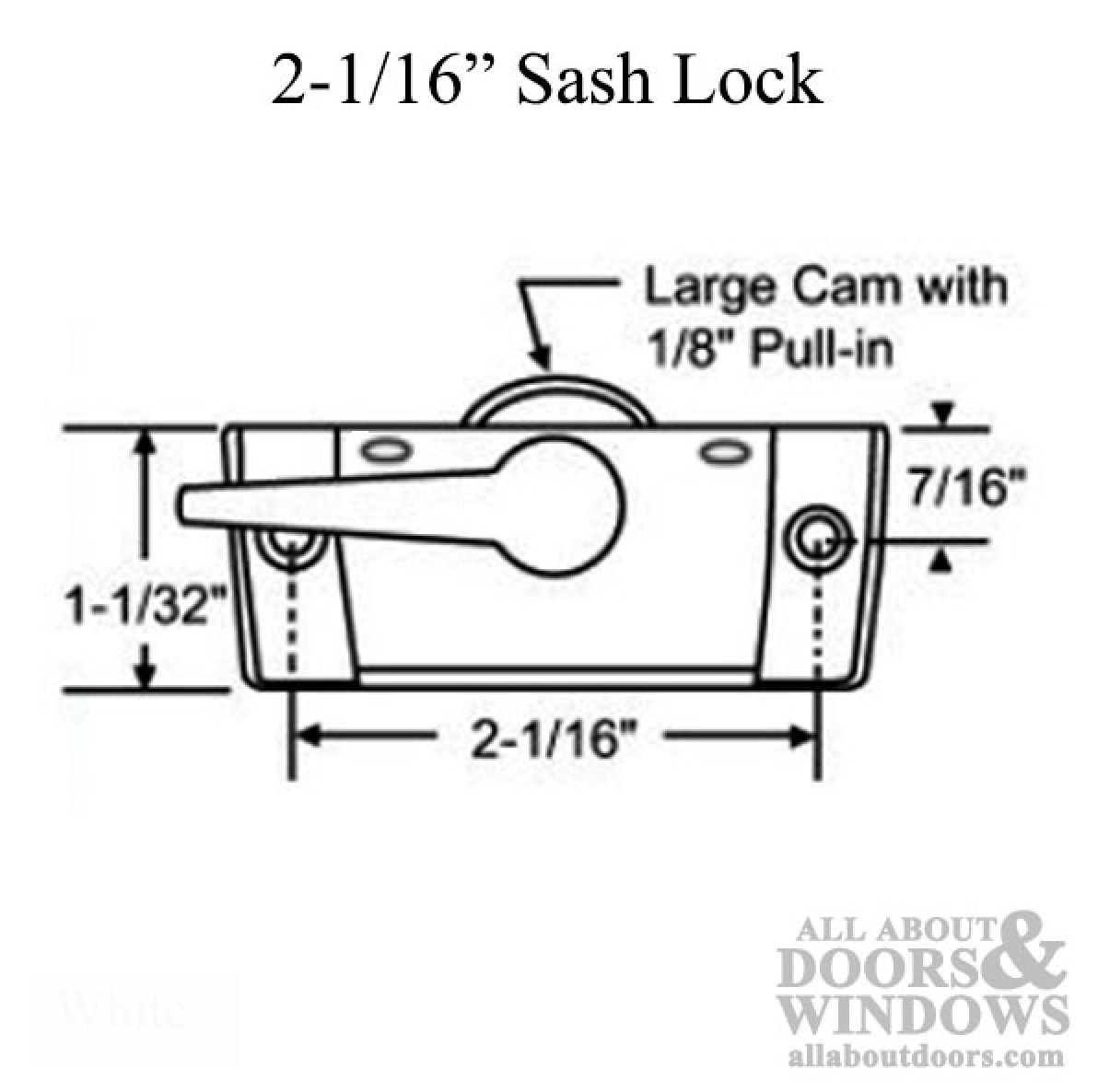

Specifications:

• Screw Holes: 2-1/16 inch (52.375mm) 2.062
• Screw Hole Set Back: 7/16 inch (11.1mm) 0.43
• Cam Type: Large 5/16 cam
• Cam Pull In: 1/8 inch
• Handed: Yes, As Shown
• Material: Zinc Die Cast
• Color: Beige / Almond
• Markings: 2182 on Cam

Hardware Note:

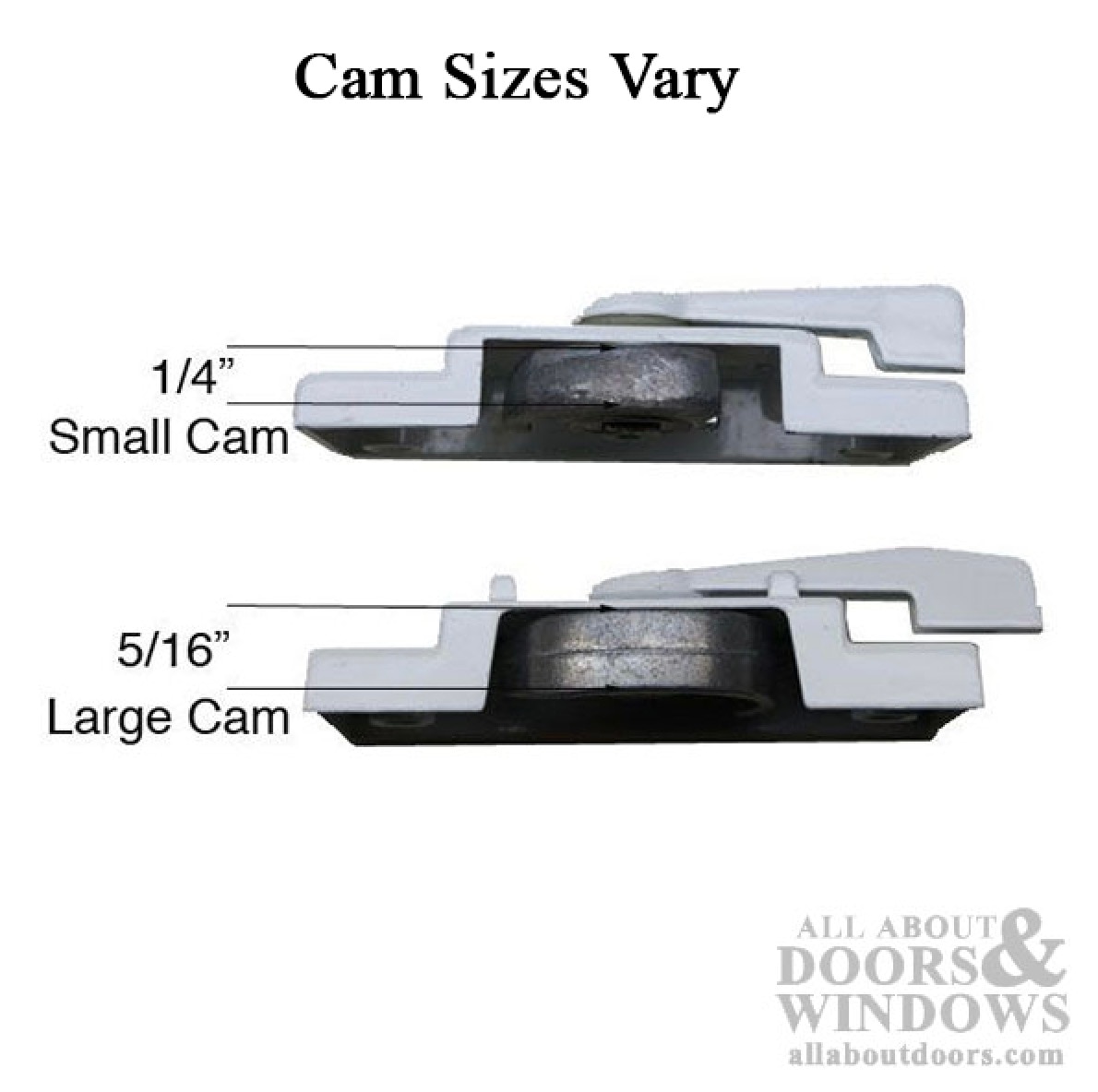

These come with small 1/16 in pull in (1/4 inch thick) and large 1/8 inch pull in (5/16 inch thick) cams.
The Small cam has .062 pull in, large cam has .125 pull in

Priced and sold each (limited to existing inventory)
