Sweep Latch, 2-1/16 Swivel type Sash Lock

Truth Trimline Sweep Lock / Cam Latch

2-1/16 Swivel-Type Sweep Latch / Sash Lock

Used on Aluminum, Wood and Vinyl Windows.

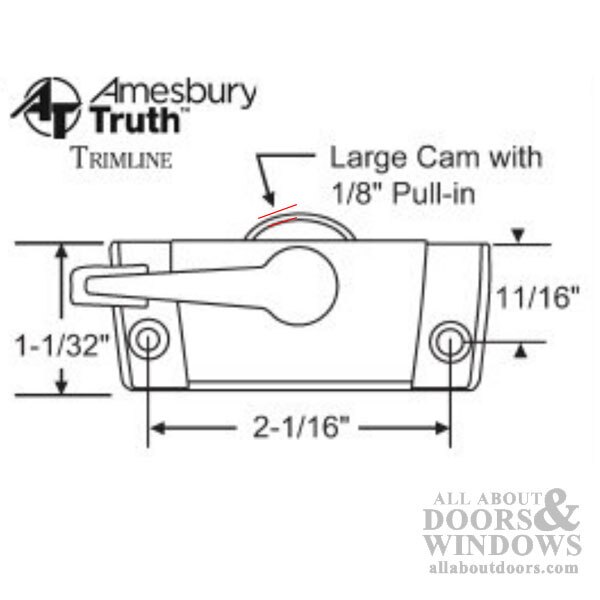

• Screw Hole Spacing: 2-1/16 inch (52.4mm)
• Screw Hole Distance from Front Edge: 11/16 inch (17.5mm)
• Latch Body Depth: 1 inch (25.4mm)
• Latch Body Length (Front): 2-13/16 inches (71mm)
• Latch Body Length (Back): 2-5/8 inches (67mm)
• Cam Height: 0.391 inch (9.9mm)

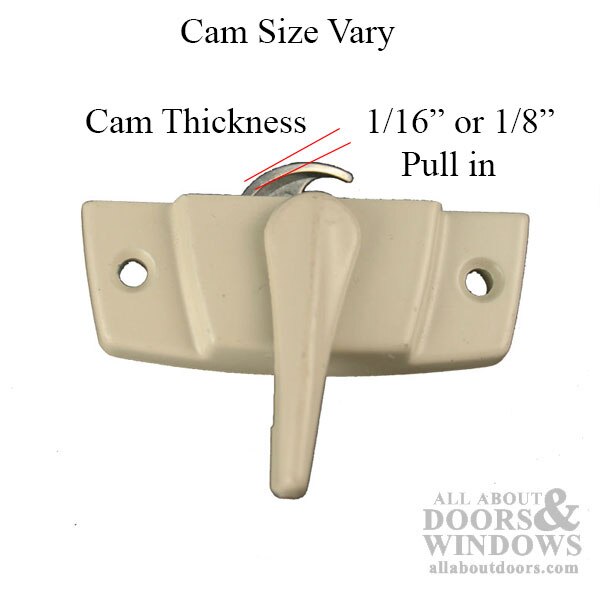

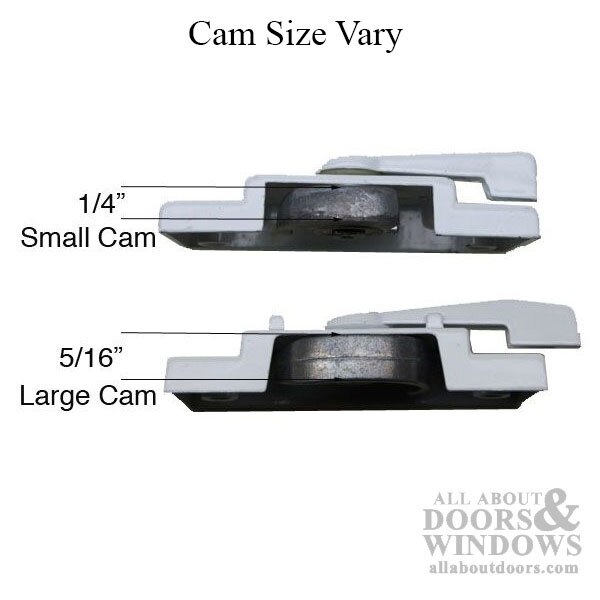

• Swivel Cam Thickness: 5/16 inch (7.9mm)
• Swivel Cam Pull-In: 1/8 inch (3mm)

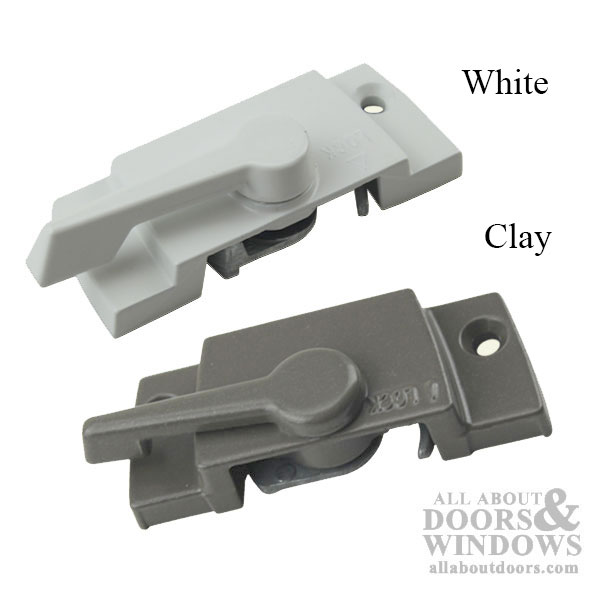

• Available Colors/Finishes:
  • White
  • Clay
  • Polished Brass

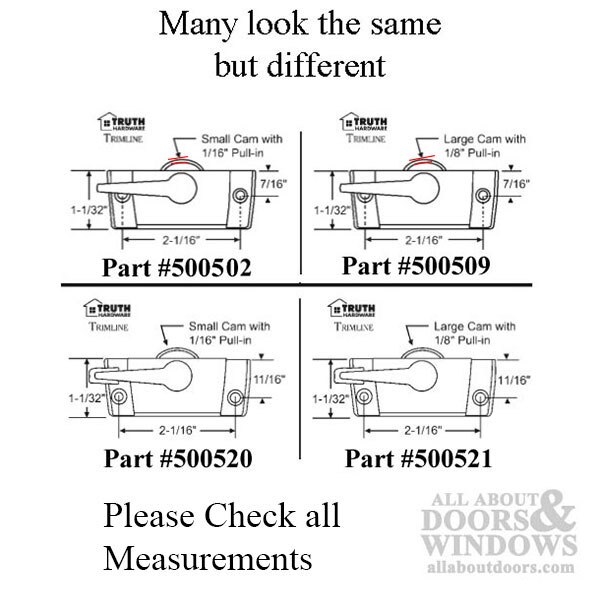

Note: Many of these parts look similar, please compare measurements.

Priced and sold each. Screws sold separately. Keeper sold separately. Please see Related Items below for other available parts.

This product is similar to or the same as the following part numbers in these brands:

Strybuc Industries: 50-387-6, 50-387-3
