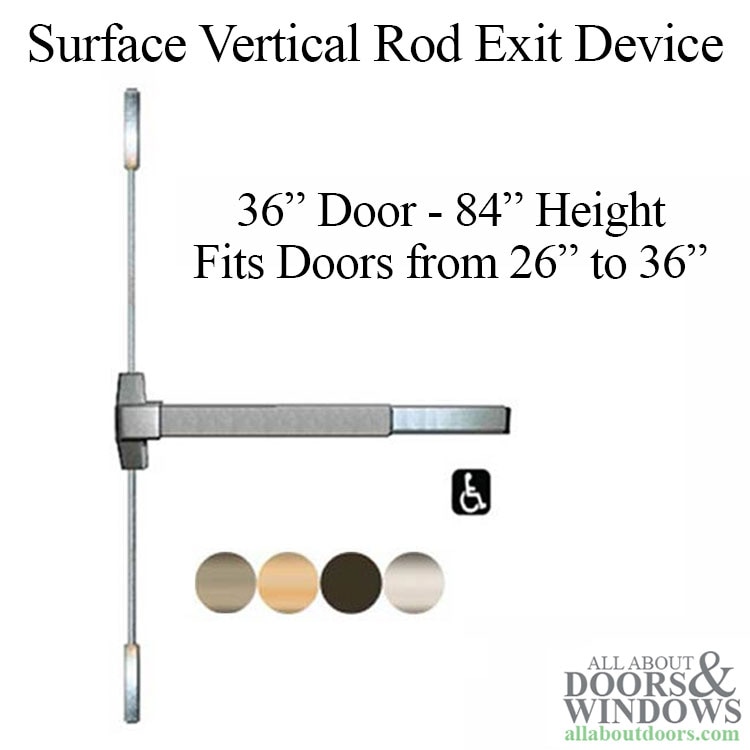

Surface Mount Vertical Rod Exit Device, 36" push panic bar

Part Number: ED-VR531
Price:$225.38 to $275.00

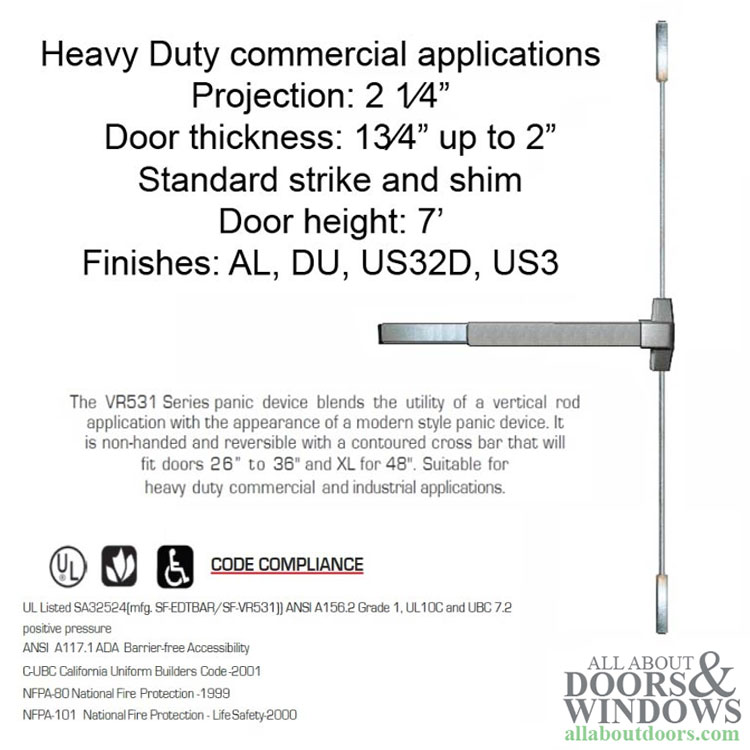

The VR531 Series Grade 1 panic device blends the utility of a vertical rod application with the appearance of a modern style panic device. It is non-handed and reversible with a contoured cross bar that will fit doors 26” to 36" Suitable for heavy duty commercial and industrial applications, like Schools, Churches, Hospitals, etc.


ANSI A 156.3 Grade 1
UL10C fire rated; barrier free
Fits Door width: 26 inch to 36 inch
Projection: 2 1⁄4”
Door thickness: 13⁄4” up to 2”
Comes with standard strike and shim
Door height: 7'
Warranty: 1 year
Plastic end cap, Can be cut down to 26” in length
Spring loaded latches
Finishes: Aluminum, Duranodic Bronze, Stainless Steel US32D and Polished Brass US3

UL Listed SA32524(mfg. SF-EDTBAR/SF-SVRTBAR)) ANSI A156.2 Grade 1, UL10C and UBC 7.2 positive pressure
ANSI A117.1 ADA Barrier-free Accessibility
C-UBC California Uniform Builders Code -2001
NFPA-80 National Fire Protection -1999
NFPA-101 National Fire Protection - Life Safety-2000

Related Exit Rod Hardware
ED-ROD12 - 12" extension rod available
ED-VR531XL - XL for 48" Wide Doors

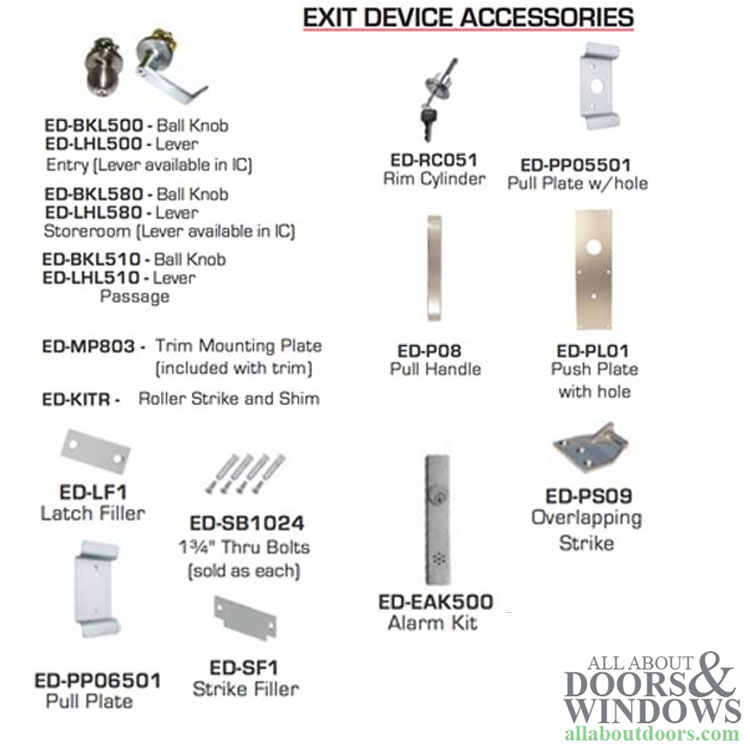

Assorted Accessories - see 4th image
