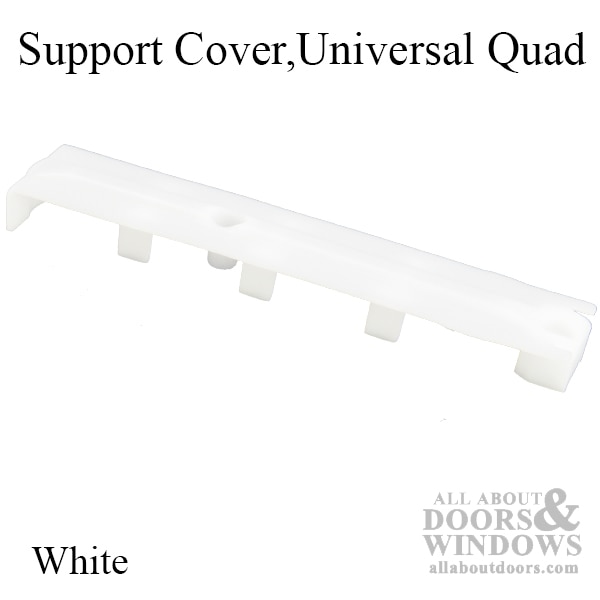

Amesbury Truth Support Cover Quad Coil Spring With 1.25 Inch Pocket White Cover

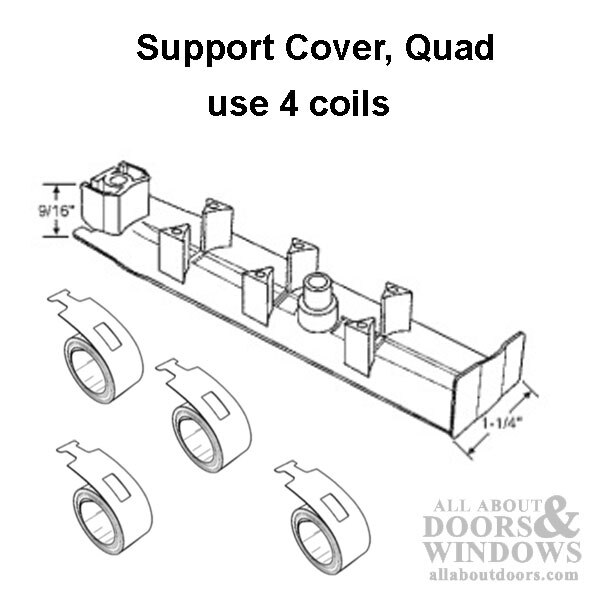

Support cover for Constant Force Balance with 4 Coils
Type: Quad Coil
Width: 1-3/16 inch
Markings: PATENT # 5.232.208 ; 5.365.638; 6.584.644 B2 PART # 801030
NOTE:

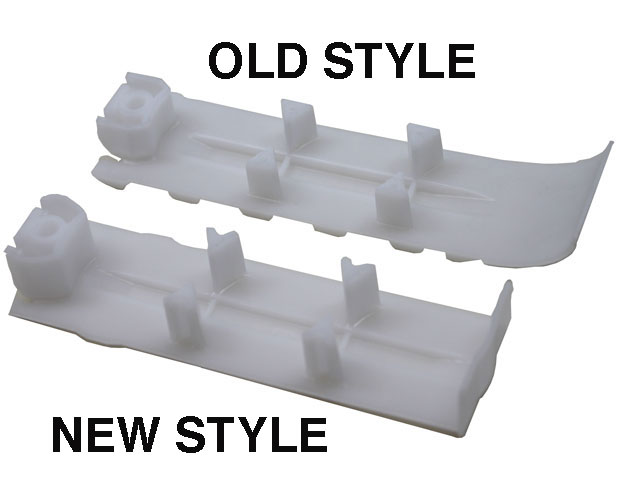

Old style ( used by Simonton ) had a curved leading edge the new ones are squared
The curved edge allows the finger latch to pass by the cover when closing window.
To close the window with the square top you need to retract the finger latches to prevent them from hitting the top of cover
UPDATE: The Amesbury Omega Series will replace the old style
Type: Quad Coil
Width: 1-3/16 inch
Markings: PATENT # 5.232.208 ; 5.365.638; 6.584.644 B2 PART # 801030
NOTE:
Old style ( used by Simonton ) had a curved leading edge the new ones are squared
The curved edge allows the finger latch to pass by the cover when closing window.
To close the window with the square top you need to retract the finger latches to prevent them from hitting the top of cover
UPDATE: The Amesbury Omega Series will replace the old style
This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: 96BU-9
Strybuc Industries: 96BU-9
