Storm Door Mortise Lock with Lock Bar Connector
This item is no longer available.
Replace with complete handle set - please see 302047
Andersen / Emco Contemprary Quick Change storm door Mortise Lock with Lock Bar.
This design can be used on a 3000 or 4000 series storm door made by Andersen / EMCO
Special Features:
Lock Bar Connector on lock case with Slide Thumb Button on inside plate.

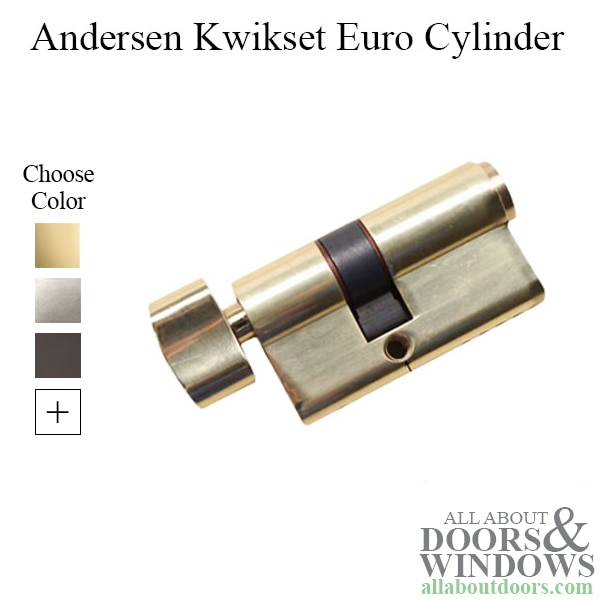

This design uses a Euro style profile key cylinder 302054 or 302055 (not included)

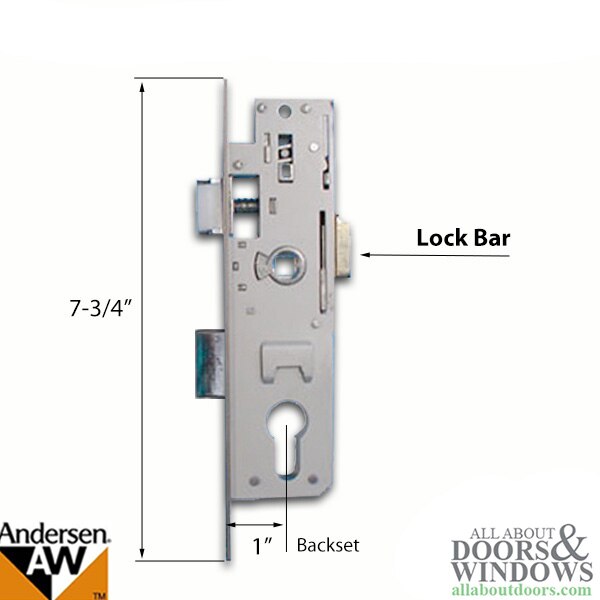

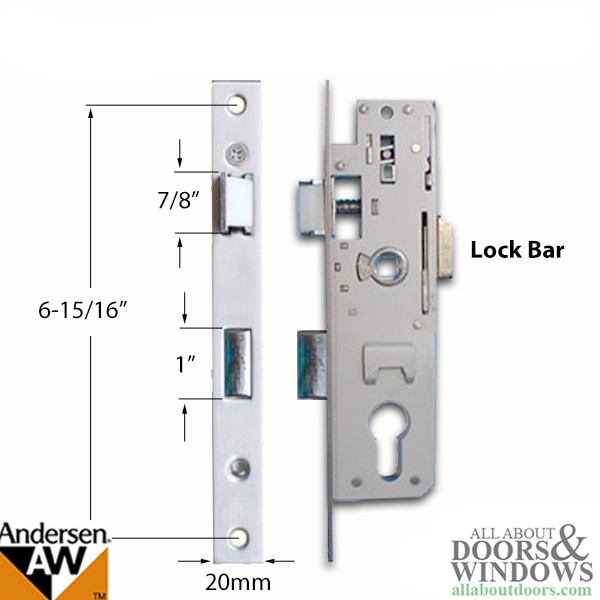

Mortise Lock Body Measurements:
Installation screws: 6-7/8 inch
Backset: 1 inch (standard is 7/8 )
Backset is measured from edge of mortise lock to center of handle
Faceplate Length: 7-3/4 inch
Faceplate Width: 7/8 inch (20mm)
Used on 1-1/2 inch doors.

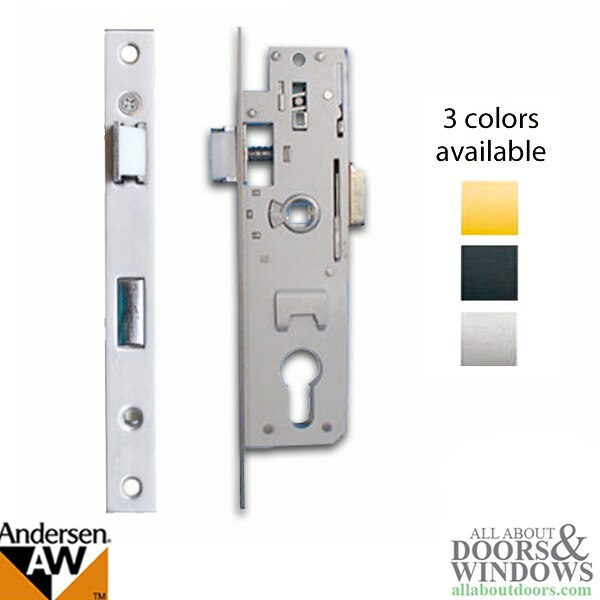

Available in 3 Colors / Finishes:
Polished Brass, Brushed/Satin Nickel and Oil Rubbed Bronze
NOTE:
To reverse the handing of this Mortise Lock, simply remove the Faceplate and rotate the Spring Latch 180 degrees, then reconnect the faceplate.
To purchase this Mortise Lock as a complete Mortise Lock Kit with Handles and Key Cylinder, 302047
