Sliding Door Dual Point Mortise Lock 2 Hooks Square Drive

Deep Backset Mortise Lock with 2 Hooks, Alignment Lug and Anti-Slam Pin

Used on the PGT 8000 / 8100 series sliding patio doors, Windoor and others.

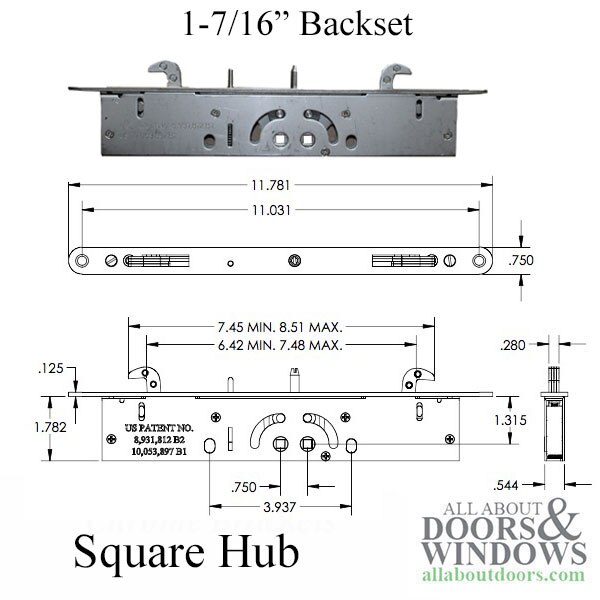

Specifications:

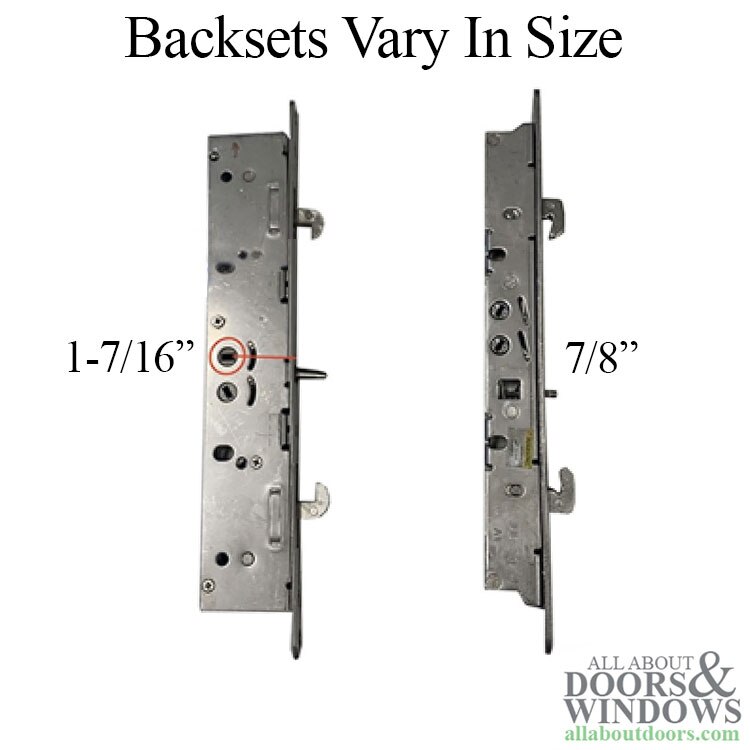

• Backset: 1-7/16
• Faceplate Width: 3/4 inch (20mm
• Faceplate Length: 11-3/4 inch
• Lock Body Depth: 1-7/8 inch
• Mortise lock, Square Drive

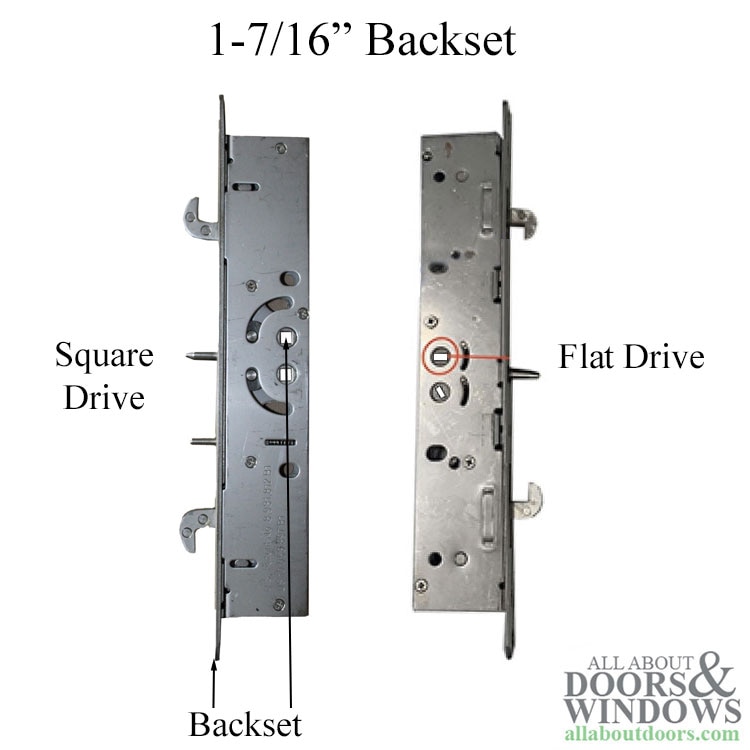

Note: This lock came in a Square Drive hub and Slotted / Flat drive hub

Markings: U.S. Patent No. 8,931,812 B1 US 10,053,897 B1
