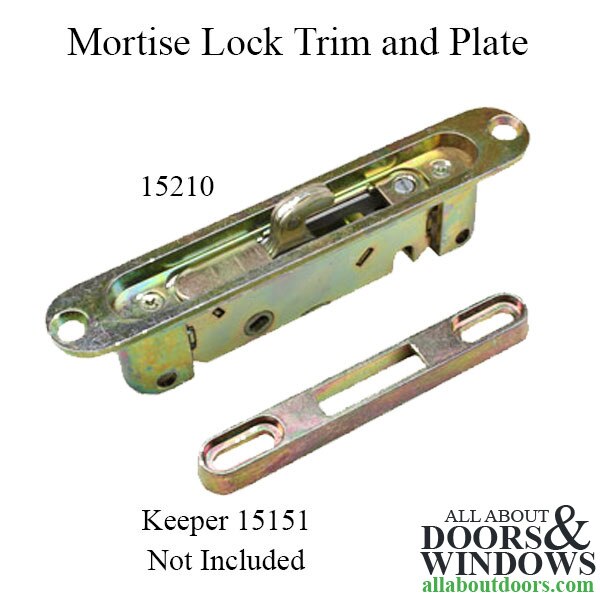

Single Point Mortise Lock with Recessed Housing
Single Point Mortise Lock with Recessed Housing. Constructed of diecast metal.
Used on Hydro aluminum Door and others.
Adjustment screw on faceplate.

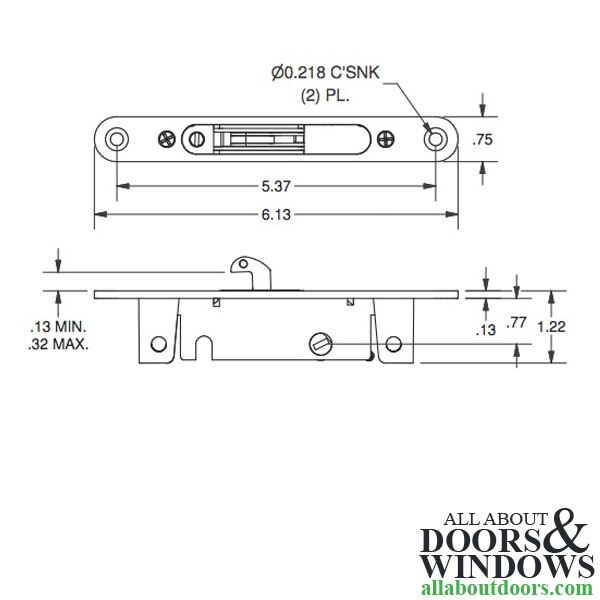

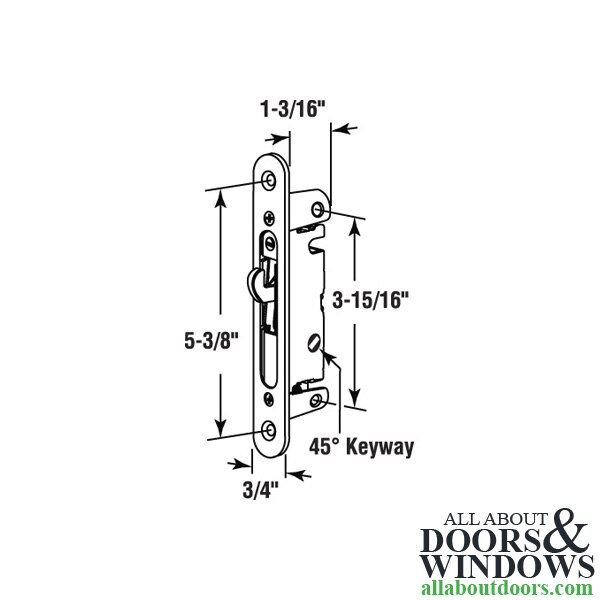

Face Plate Width: 3/4"
Face Plate Length: 5-3/8"
Screw Holes: 5-3/8" center-to-center
Keyway: 45°
Can be replaced with 15142 if customer can reuse existing housing / faceplate
NOTE: Priced and sold each. #15151 keeper not included.
Used on Hydro aluminum Door and others.
Adjustment screw on faceplate.
Face Plate Width: 3/4"
Face Plate Length: 5-3/8"
Screw Holes: 5-3/8" center-to-center
Keyway: 45°
Can be replaced with 15142 if customer can reuse existing housing / faceplate
NOTE: Priced and sold each. #15151 keeper not included.
