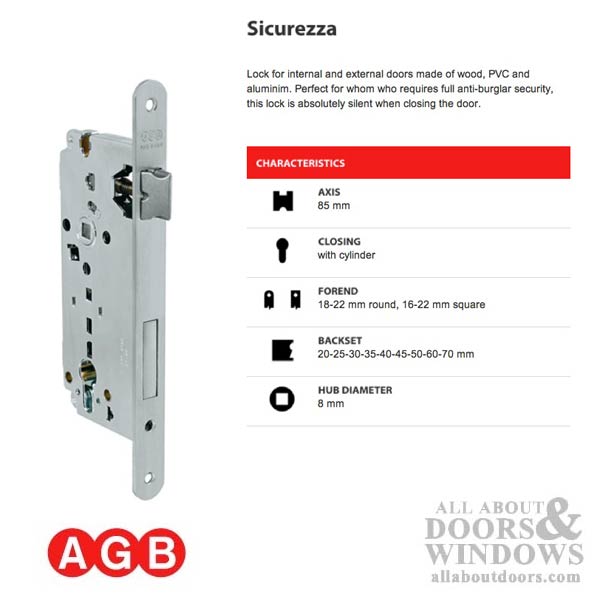

Single Point Mortise Lock Body 50/85 AGB - Chrome
Single Point Mortise Lock Body 50/85
Lock for internal and external doors made of wood, PVC and aluminum.
Backset: 2 inch (50mm)
Handle PZ (axis): 3.346" (85mm)
Spindle / Hub Diameter: 5/16 inch ( 8mm) Square
Deadbolt Throw: 7/8 inch (22mm)
Face Plate Width: 7/8 inch (22mm)
Face Plate Length: 9-3/8 inch
Face Plate Corner (Forend): Radius
Face Plate Finish: Chrome
Country of Origin: Italy
Note: This lock is also available in 40mm, or 70mm backset (Please call to order)
Additionally, we keep a limited number of stock on these items. Please note that if we are out, there is a 6-8 week lead time.
