Single Point Mortise Lock Body 45/85 AGB - Chrome

Part Number: B00851.45.06
Price: $71.11

This is a special order item.
No returns, refunds or exchanges on this item.

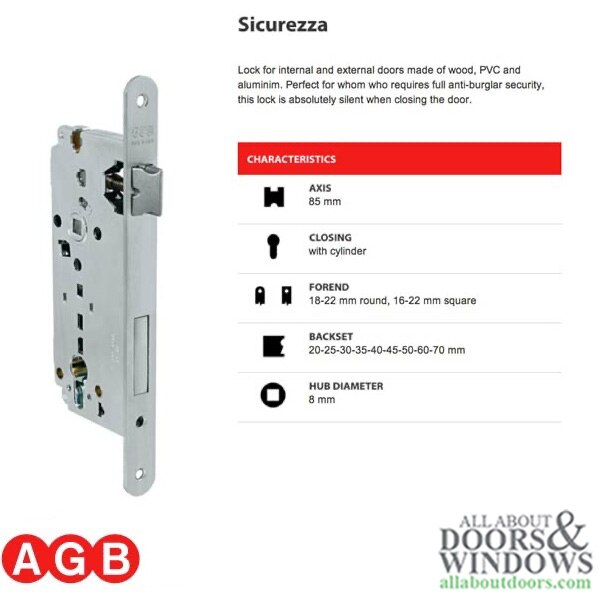

Single Point Mortise Lock Body 35/85
Lock for internal and external doors made of wood, PVC and aluminum.

Backset: 1.77 inch (45mm)
Handle PZ (axis): 3.346" (85mm)
Spindle / Hub Diameter: 5/16 inch ( 8mm) Square
Deadbolt Throw: 7/8 inch (22mm)
Face Plate Width: 7/8 inch (22mm)
Face Plate Length: 9-3/8 inch
Face Plate Corner (Forend): Radius
Face Plate Finish: Chrome
Country of Origin: Italy

Note: This lock is also available in 20mm to 70mm backset (Please call to order)

Additionally, we keep a limited number of stock on these items. Please note that if we are out, there is a 6-8 week lead time.
