Hoppe Single Point Mortise Lock 1-3/8" Backset 1" Deadbolt Throw

Hoppe Special Faceplate GR SP HLS9350 - HLS9000 - GR SP HLS9000

Single Point Gear, HLS9350, 1-3/8" backset
Application: Active, Single Point Lock (SPL)

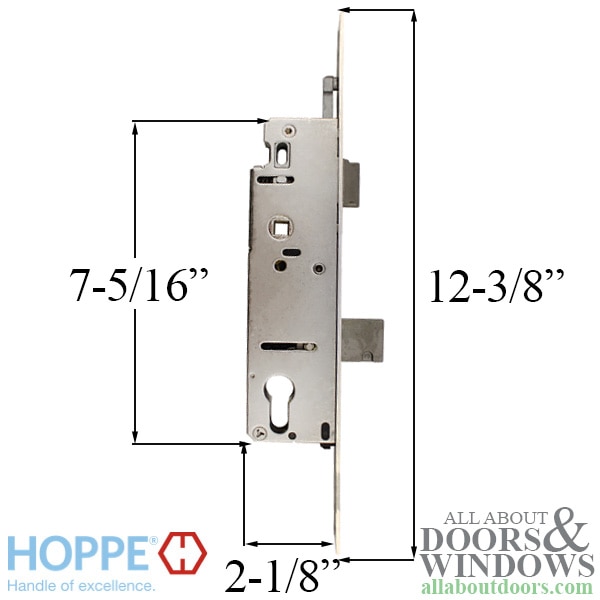

Backset: 1-3/8 inch (35mm)
Deadbolt Throw: 1 inch (25.4mm)

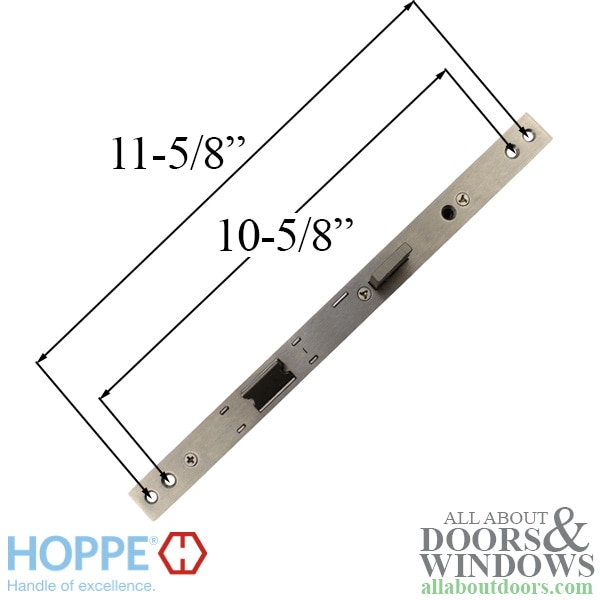

Faceplate Width: 7/8 inch (22mm)
Faceplate Length: 12-3/8 inch (314.3mm)

Square end with rotation limiter/locking linkage (when locked the handle remains fixed, does not move)

Manual Active, 35mm backset, 25.4 mm deadbolt throw 22mm wide, square end with rotation limiter/locking linkage

Country of origin: United States

CN Code: 83016000
