Shootbolt Version 45/92 American 35.345 HH, 78-1/2 inch length
Pella Replacement Multipoint Lock.

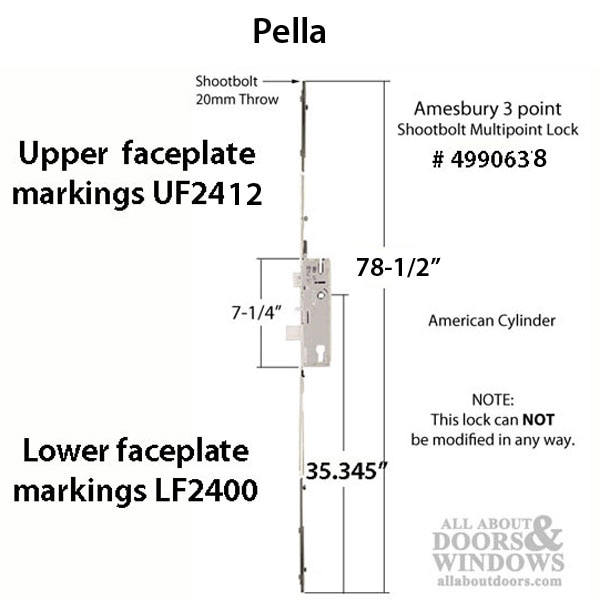

Amesbury Shootbolt Version 45/92 American 35.345 HANDLE HEIGHT, 83.06 inch length
Handle height (HH): 35.345 / 35-11/32 inches
Faceplate length: 78-1/2 / 78.5 inches ( unlocked position - SHOOTBOLTS RETRACTED)

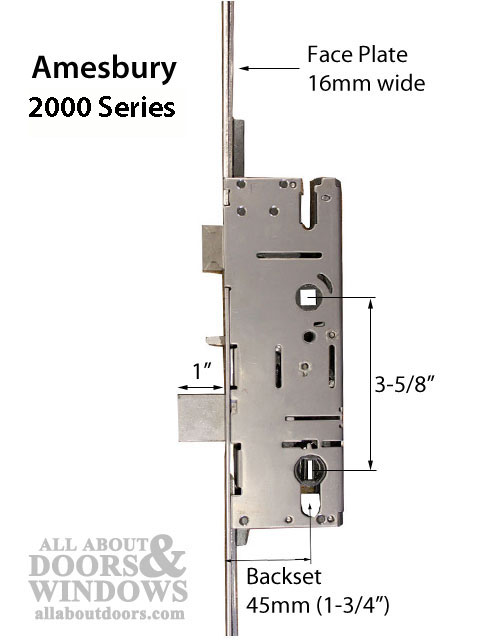

Faceplate Width: 5/8 inch ( 16mm)
Faceplate Markings: Lower LF2400 , Upper UF2414
Backset: 1-3/4 inch ( 45mm)
Deadbolt Throw: 1 inch (25mm)

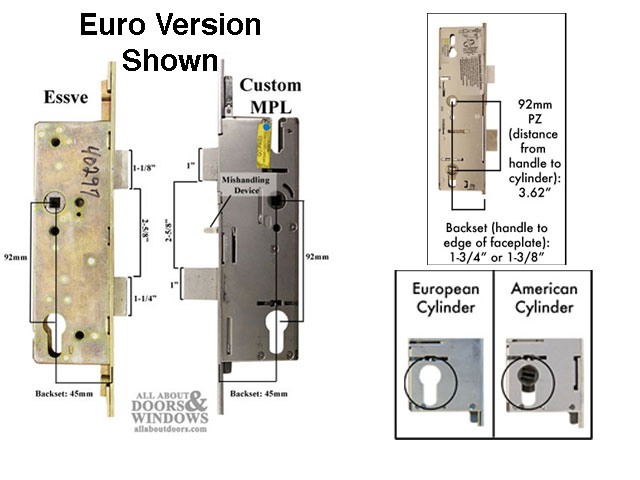

Cylinder PZ: 3-5/8 inch ( handle to thumbturn)
Cylinder Type: American Version with flat tail piece
NOTE: IF your lock is broken, we suggest replacing the lock case only and re-use your other parts.
Replacement Lock Case # P2000-45
SPECIAL NOTE:
NOTE: ALMOST The same # 8045230681 w/ 83.87 height
NOTE: ALMOST The same # 8045241479 w/ 83.065 height
Amesbury Shootbolt Version 45/92 American 35.345 HANDLE HEIGHT, 83.06 inch length
Handle height (HH): 35.345 / 35-11/32 inches
Faceplate length: 78-1/2 / 78.5 inches ( unlocked position - SHOOTBOLTS RETRACTED)
Faceplate Width: 5/8 inch ( 16mm)
Faceplate Markings: Lower LF2400 , Upper UF2414
Backset: 1-3/4 inch ( 45mm)
Deadbolt Throw: 1 inch (25mm)
Cylinder PZ: 3-5/8 inch ( handle to thumbturn)
Cylinder Type: American Version with flat tail piece
NOTE: IF your lock is broken, we suggest replacing the lock case only and re-use your other parts.
Replacement Lock Case # P2000-45
SPECIAL NOTE:
NOTE: ALMOST The same # 8045230681 w/ 83.87 height
NOTE: ALMOST The same # 8045241479 w/ 83.065 height
