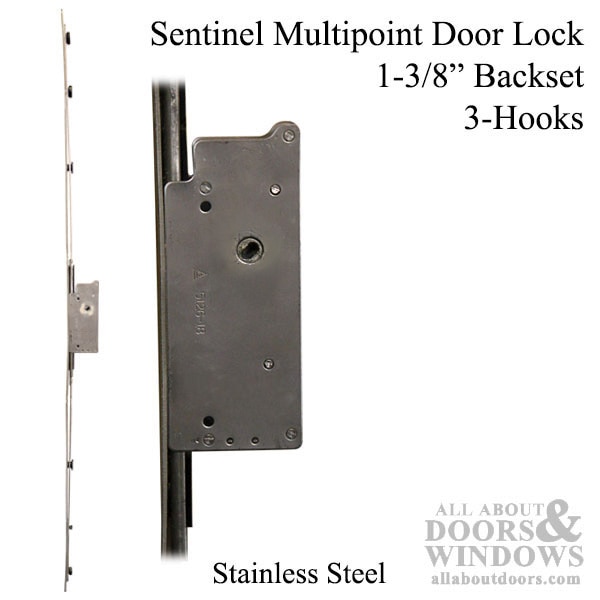

Sentinel Multipoint Sliding Door Lock 3 hooks, 35mm Narrow Style - Stainless Steel

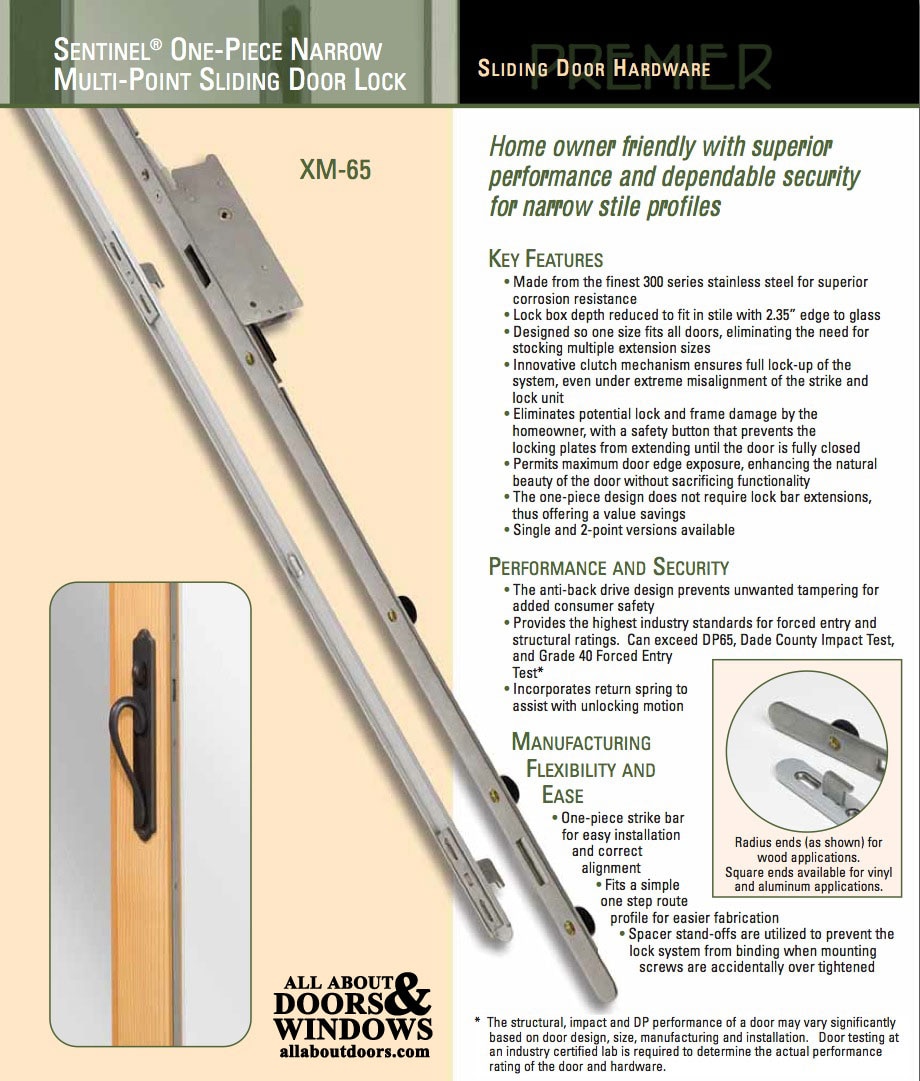

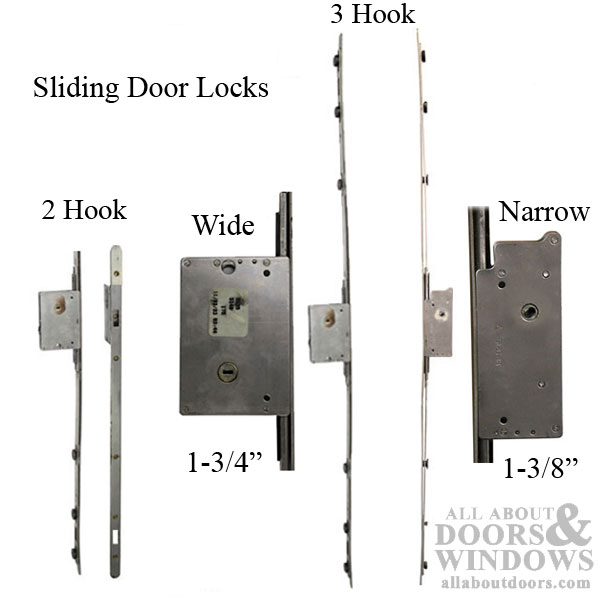

Sentinel Narrow Style multipoint sliding door lock with receptacles for 3 hooks.
Used by Caradco, Jeldwen and others.
Backset: 1-3/8 inch ( 35 mm)
Overall Length: 40-15/16 inch, Radius ends
Hooks: 3 - spaced 16-7/8 inch
Lock Body case: 2-1/8 x 4-7/8 inch
Lock case Markings: 5126-18
Operation of Lock:
This lock uses hooks; the center hook goes into the lock case and pushes the plate back. This allows the thumb turn or key to turn and secure door in locked position.
We recommend that before you close your door to check out the functionality of the lock by inserting a screw driver or pencil into the center lock hole, pushing the plate back and testing the operation of lock.

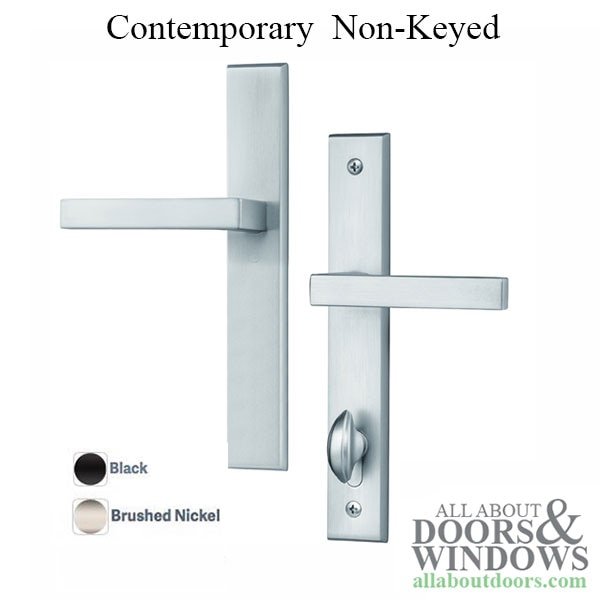

Related Handleset Trim:
14545 - Narrow plate, 1-1/4 inch wide handle set trim
14552 - Wide plate, 1-11/16 inch wide handle set trim
NOTE: IF you have Marvin trim, you will need to go back with same brand. They have a special drill hole pattern for their hardware.
