Sentinel 2 point Sliding Door Lock, XM-55 Multipoint - Stainless

Part Number: 40217
Price: $105.95
Sentinel multipoint sliding door lock with receptacles for two locking hooks.
This lock has an adjustable modular design that accommodates a variety of door sizes.
Uses a one piece strike bar or individual hooks
Radius ends for wood applications or Square ends for Vinyl and Aluminum doors
Used by Caradco, Jeldwen, Marvin and others.

Ends: Round,

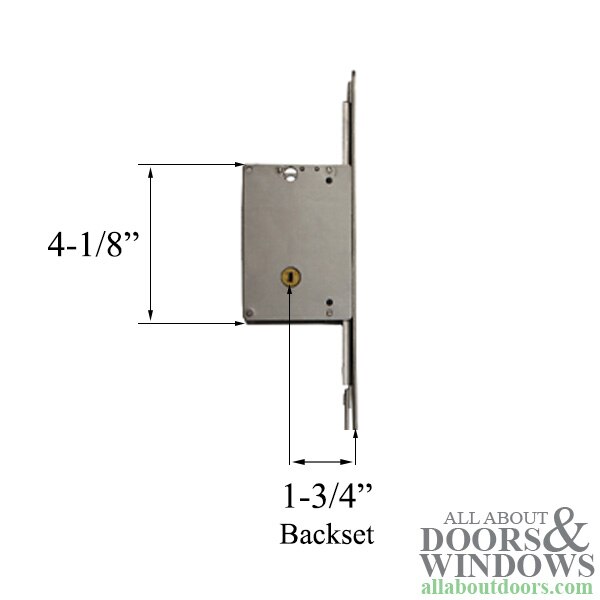

Backset: 1-3/4 inch ( 45 mm)
Faceplate Width: 25/32 inch ( 20mm)

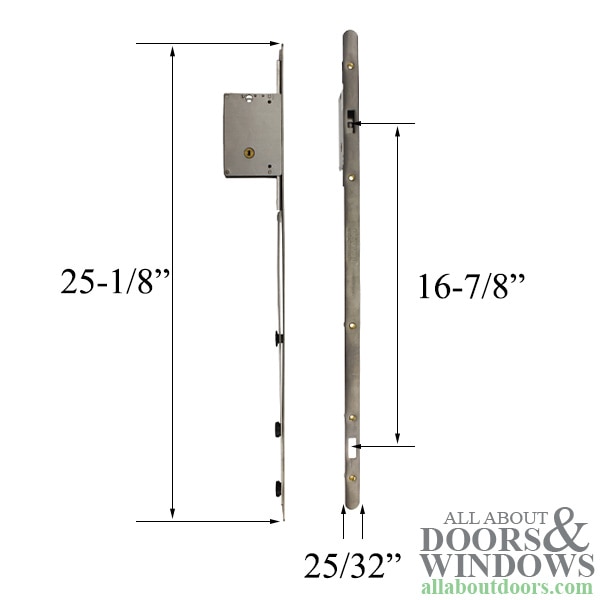

Overall Length: 25-1/8 inch, Radius ends
Hooks: 2 - spaced 16-7/8 inch
Lock Body case: 2-15/16 x 4-1/8 inch
Lock case Markings: White tag with numbers
Priced and sold each.

Operation of Lock:

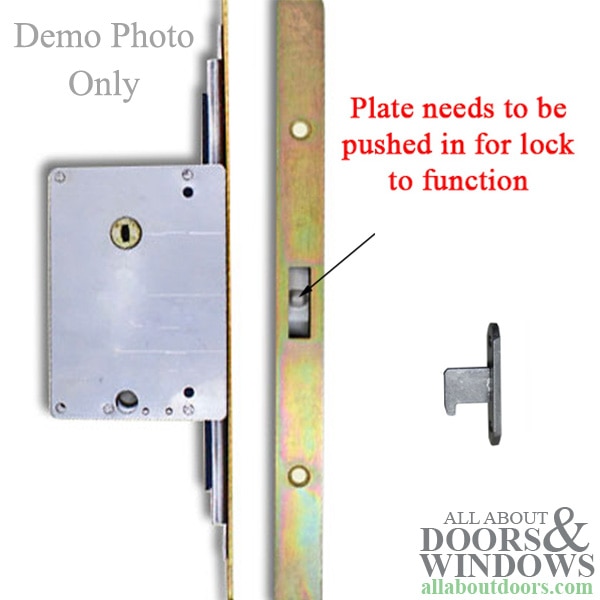

This lock uses hooks; the center hook goes into the lock case and pushes the plate back. This allows the thumb turn or key to turn and secure door in locked position.
We recommend that before you close your door to check out the functionality of the lock by inserting a screw driver or pencil into the center lock hole, pushing the plate back and testing the operation of lock.


Related Handleset Trim:
14545 - Narrow plate, 1-1/4 inch wide handle set trim
14552 - Wide plate, 1-11/16 inch wide handle set trim

NOTE: IF you have Marvin trim, you will need to go back with same brand. They have a special drill hole pattern for their hardware.
