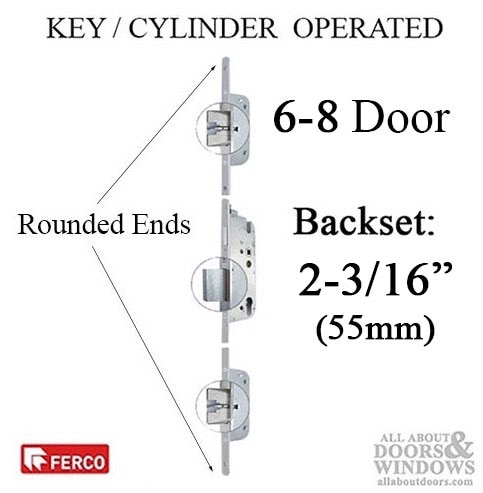

Secury Automatic Multipoint Lock, Key Operated, 55/92 Gear Driven 6-8 Door

GU Secury Automatic European Profile cylinder key operated, gear driven lock.
Use your key or thumb turn to lock and unlock door, Levers are not needed.
Used for a clean modern looking door, Optional Push / Pull bars and other accessories are available

The Secury Automatic would be an excellent choice because there is no second operation to engage the multi-points to keep the door in alignment. Every time the door closes the latches extend without lifting the handle.

Faceplate width: 5/8 inch (16mm)
Backset: 2-3/16 inch (55mm)
Handle Height: 41.338 inch (1050mm) Croppable
Deadbolt Throw: 3/4 inch (20mm)
Spindle Hub: 5/16 inch (8mm)
Cylinder to Spindle: 3-5/8 inch (92mm)
Overall Length: Fits 6-8 Door
Bottom Latchbolt Position:
Upper Latchbolt Position:
Material: 304 Stainless Steel

Compatible with:
K-C8153-01-0-0 — Set Motor Secury Automatic Universal
K-C5560-20-4-BLPC — GU - SECURE Connect 200

Lock Operation:
Simply close the door and the top and bottom latches extend 3/4 inch (20mm) to secure the door in the locked position.
Open the door with exterior key or interior thumb turn.
Turning Key or thumb turn 180° will retract deadbolt, and additional 180° will retract latches.


Related Hardware: Push - Pull Handles
K-C0340-08-P-8B Double Pull bars, Round, Length 31.496 inch (800mm)
K-C0340-12-P-8B Double Pull bars, Round, Length 47.244 inch (1200mm)
K-C0340-18-P-8B Double Pull bars, Round, Length 70.866 inch ( 1800mm)

K-C0345-08-P-8B Double Pull bars, Round 45° Offset 800mm
K-C0345-12-P-8B Double Pull bars, Round 45° Offset 1200mm
K-C0345-18-P-8B Double Pull bars, Round 45° Offset 1800mm
K-C0350-12-P-8B Double Pull bars, Rectangular 1200mm
6-C0531-00-0-8B Interior Caps for Pull Bars (1)
K-C0960-00-0-8B Support Plates for Pull Bars (4)
