SLIMLINE mortise lock set, 35mm Backset

Part Number: 301109
Price: $89.95

Slim line storm door mortise lock with 1-3/8 inch (35 mm) backset.


Model 8530

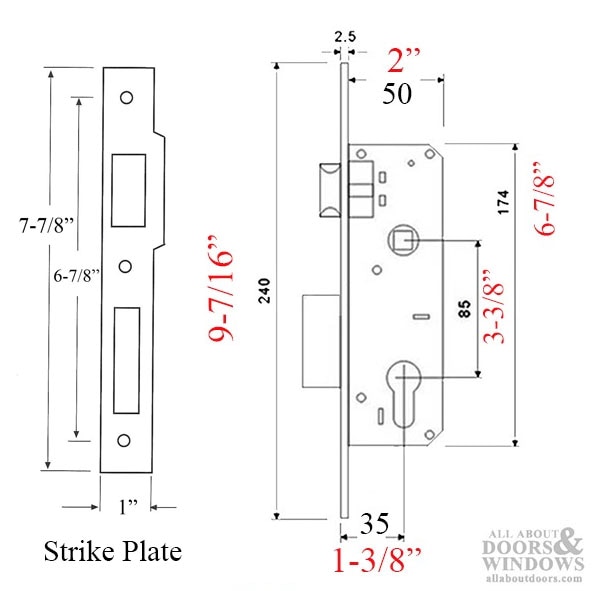

Faceplate Measures: 1 inch  (25 mm) by  9-7/16 inch (240 mm)

Face Plate Color: Silver

Screw hole Spacing:  8-5/16 inches (210 mm)


Backset: 1-3/8 inch (35 mm)

Deadbolt Throw: 1/2 inch (12.7mm)

Handle PZ: 3-11/32 inch (85 mm)

Backset is measured from the front of faceplate to center of Handle / cylinder hole


Can reverse latch by loosing screw behind until it spins the latch, then tighten into place.


Replaces CEL,  KFV, Omnia, Tefco and Marks with 1-3/8 inch (35mm) Backsets

Markings: Made in China


The deadbolt latch may not match exactly with older styles, but adjustments can be made.

Priced and sold each.
