Roto Single Point Mortise lock 16/25/92, 1" backset

Part Number: 449872
Price: $64.23

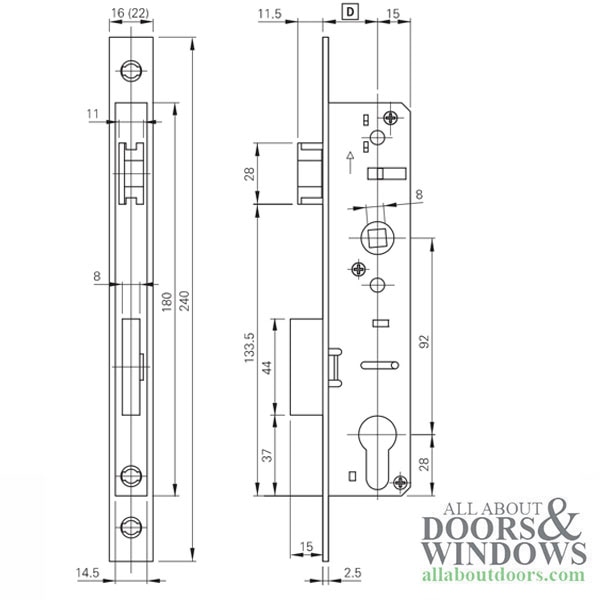

Roto 16/25/92 Single Point Mortise lock 1" backset, 9/16" deadbolt throw


Backset: 1 inch (25mm)
Deadbolt Throw: 9/16 inch (15mm)
Handle to Cylinder PZ: 3-5/8 (92mm)
Hub Diameter: 5/16 (8mm)
Faceplate Width: 5/8 (16mm)
Faceplate Length: 9-7/16 (240mm)
Installation Screw Holes: 8-1/4 inch (210mm)
Lockcase length: 7 inches ( 180mm)
Lockcase Depth: 1-9/16 (40mm)
Faceplate Color: Silver

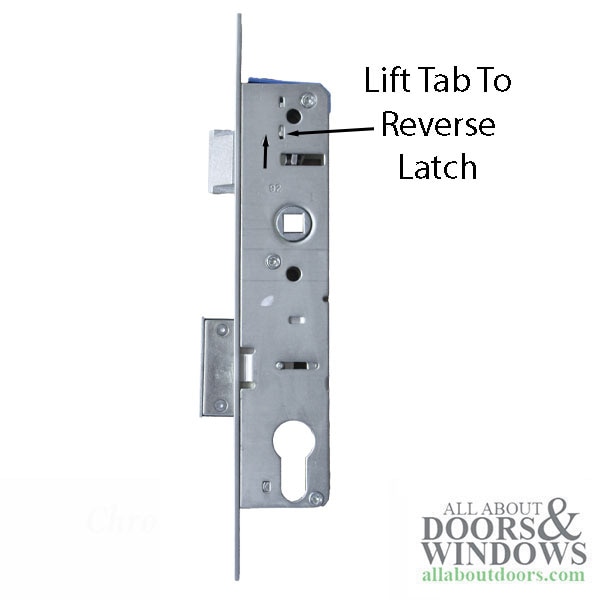

Handed: NO, Reversible Latch (see additional images)

Note: Other backsets Available, Optional 22mm Faceplate width
