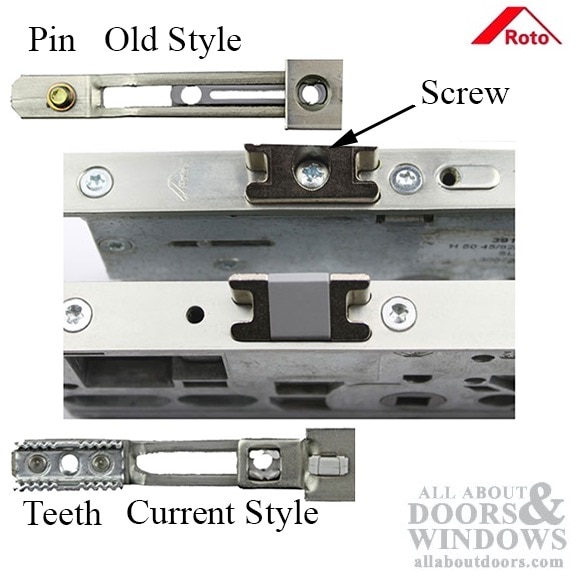

Roto Gear Box only, Old Style, Replacement - 35mm backset

Old-Style 2nd generation Roto gear box - Obsolete / Discontinued

Limited to Existing Inventory - Requires Complete replacement.

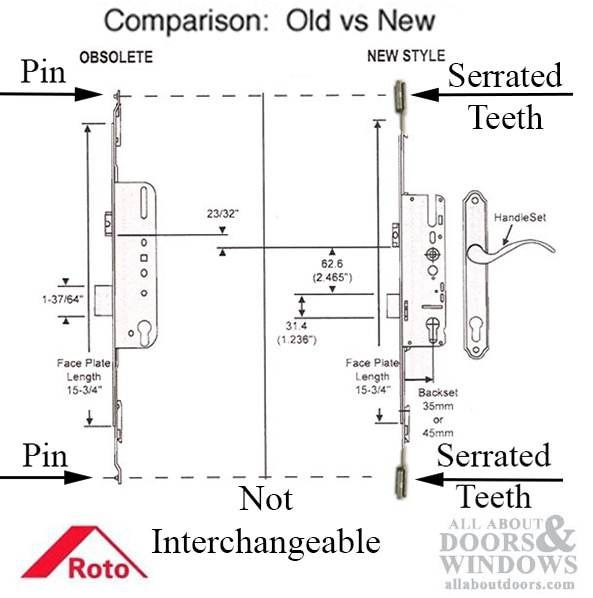

Older Styles and New Style are not interchangeable

This style had the dead bolt in a new location. Approximately  1/8 " lower

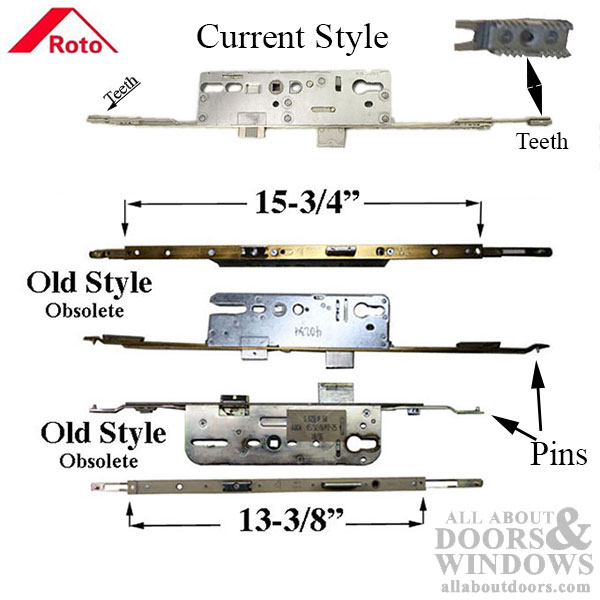

Faceplate length was 15-3/4 inches extended from the older version with 13-3/4 faceplate

This Roto gear lock box worked on roller and tongue version locks.

Was available in 1-3/8 (35 mm) or 1-3/4 (45 mm) back sets.

OPTION: Replace entire multipoint lock with HOPPE Stainless Steel Tongue version. The Hoppe Tongue version is used with both roller and tongue locks.

PLEASE Fill out work sheet and submit to office for best replacement option.
