Roto 7-1/2" Single Arm X-Drive, RH For Vinyl Window Application - White

Part Number: 572008
Price: $39.95
Roto X-Drive qwith 7-1/2" Single Arm, For Vinyl Window Application.

Brand: Roto Hardware

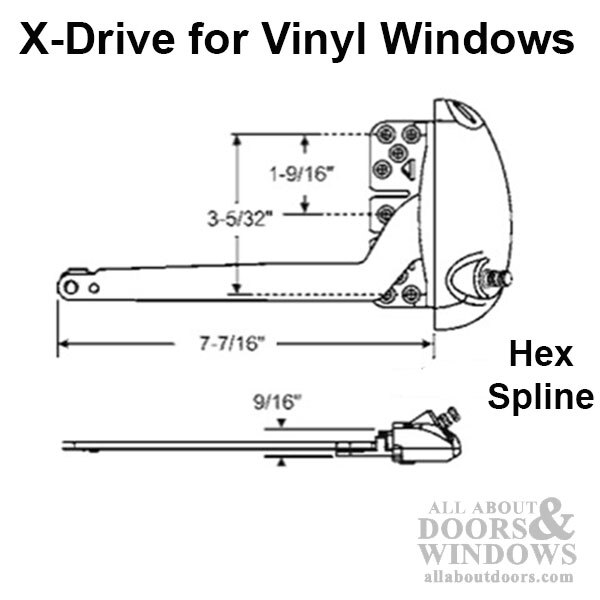

Arm Length: 7-1/2 from housing to middle of arm
Handed: Yes, Left and right handed applications as shown
Colors/Finish: White


Note:

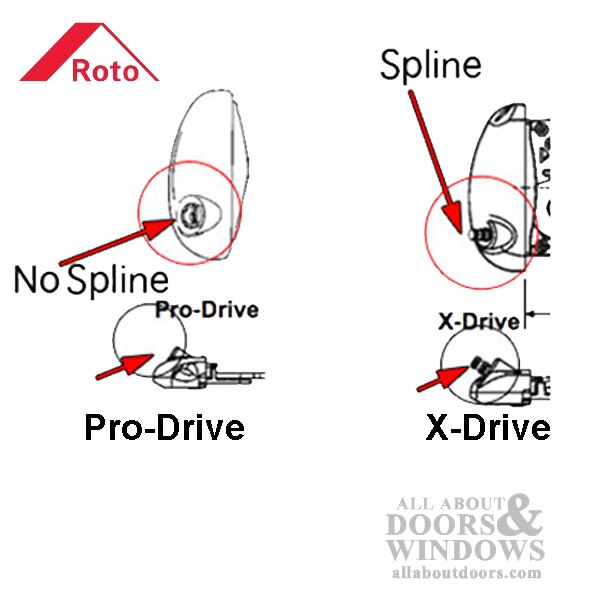

The X-Drive and Pro Drive are the same operator that uses a different crank handle.

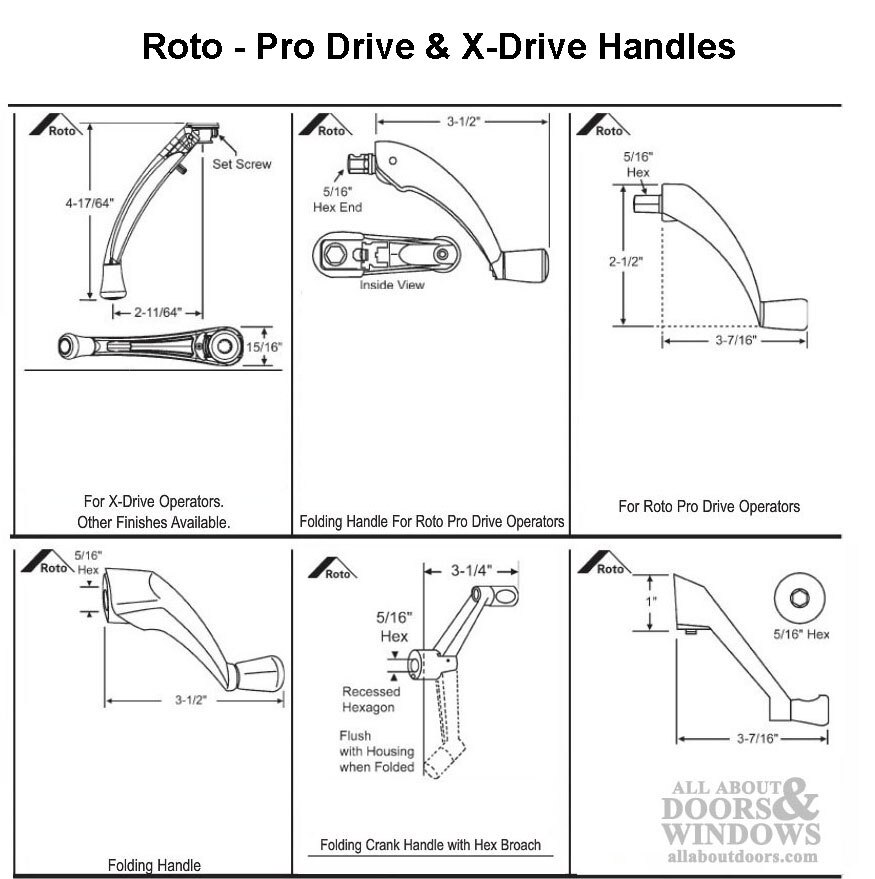

The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: 36-498W-XD
