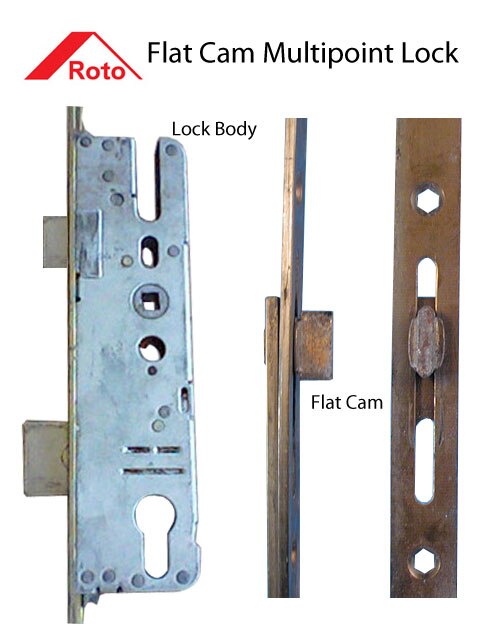

This is a 5 point Flat Cam Multipoint Lock made by Roto
It features 4 Flat Cams; 2 above the hande and 2 below the handle.
The first Flat Cam is located 14-1/4\" above the center of the Handle Cylinder
The second is located 29\" above the center of the Handle Cylinder
The third Flat Cam is located 15\" below the center of the Handle Cylinder
The forth is located 29-3/4\" below the center of the Handle Cylinder
This was a one piece lock.
It has been Discontinued and is no longer available for purchase.
It must be replaced.

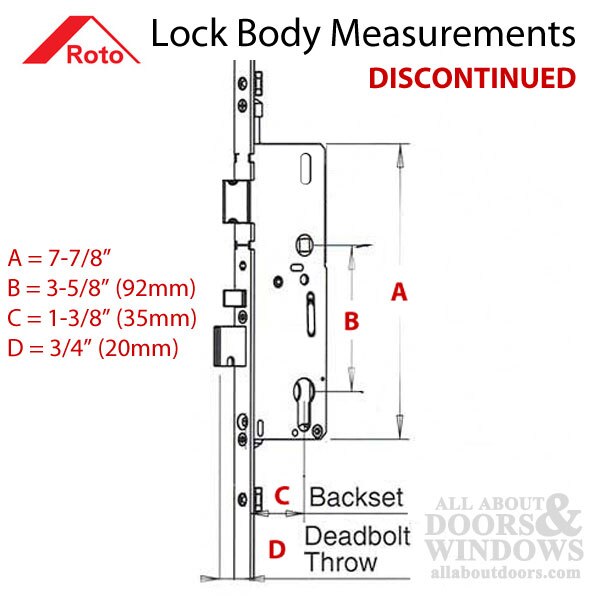

Discontinued Lock Measurements:
Overall Length: 71\" (lengths may vary)
Backset: 35mm (1-3/8)
Faceplate Width: 16mm (5/8\")
Handle Height: 32-3/8\"
Handle Spacing (PZ): 92mm (3-5/8\")
First Top Cam: 14-1/4\" above center of Handle Cylinder
Second Top Cam: 29\" above center of Handle Cylinder
First Bottom Cam: 15\" below center of Handle Cylinder
Second Bottom Cam: 29-3/4\" below center of Handle Cylinder
Due to the uniqueness of this Multipoint Lock, finding a suitable replacement can be quite an undertaking.
In order to find the correct replacement we must have additional information about the door that the lock came off of, and the lock itself.
If you are attempting to replace the above mentioned lock, please fill out this Roto Multipoint Lock Worksheet, e-mail it to us and one of our representatives will contact you as soon as possible.
