Roto 13-1/2" Single Arm X-Drive, Right Hand, Vinyl casement window operator - Choose Color

Part Number: OP06-7533
Price:$26.06 to $27.16
Roto X-Drive 13-1/2" Single Arm. For Vinyl Window Application.

Brand: Roto Hardware
Application: Surface Mount, Vinyl Windows

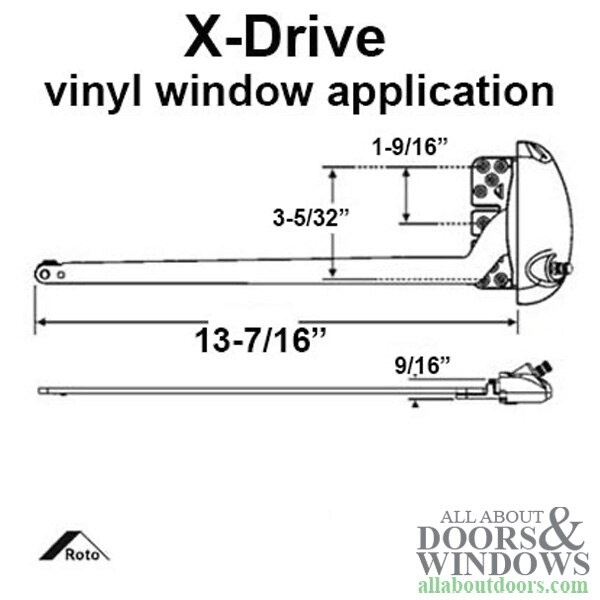

Arm Length: 13-1/2 inch (13-7/16 from housing to middle of arm)
Handed: Right
Spline: X-Drive (5/16inch hex spline)
Colors/Finish:
White
Almond
(Earth White, G2 Almond, Blue White may be available by special order -- contact office please).

Note:

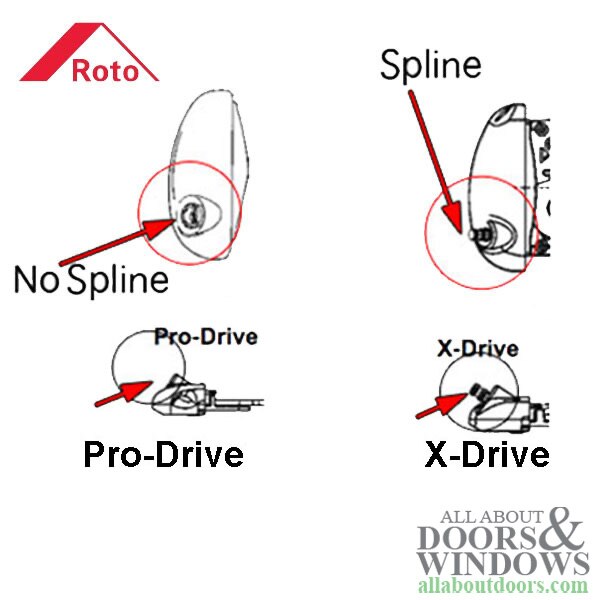

The X-Drive and Pro Drive are the same operator that uses a different crank handle.
The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.

Priced and sold each.

Related Parts:

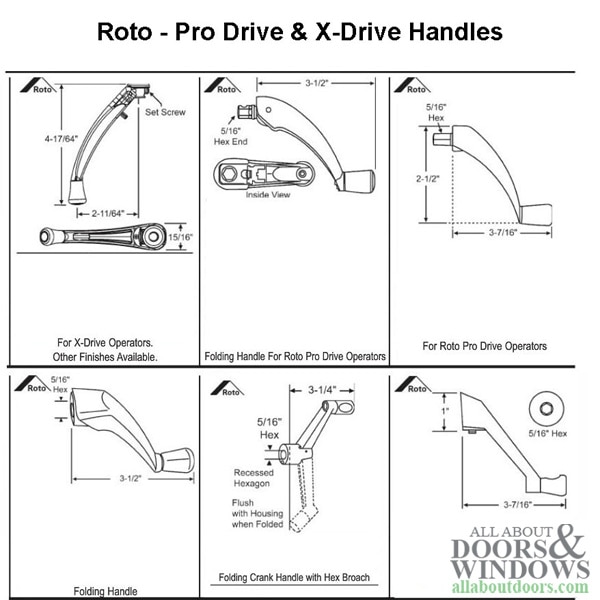

Folding Crank Handle: 570014
Old Style Crank Handle: 570010
