Roller Tilt Constant Force Balance RT625Di Drop-in Cartridge
Warning: This item is not properly configured, please contact your administrator.
Limited to Existing Inventory
3 lb & 4lb roller Tilt Drop In constant force coil balance used by United and Weather Shield on Single or Double Hung windows

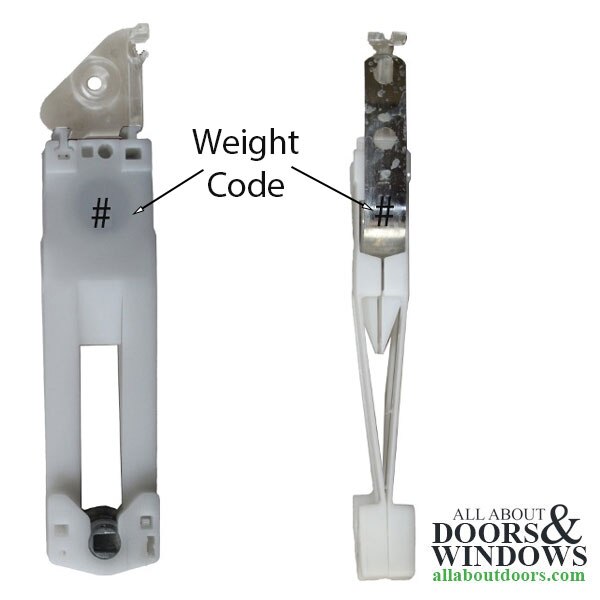

Number on Cartridge: 3 or 4
Cartridge Length: 5 inches
Cartridge Width: 1-1/4 inch
Cartridge Thickness: 5/8 inch (16mm) 0.625
Window Pocket size: 0.625 ( optional 0.562)

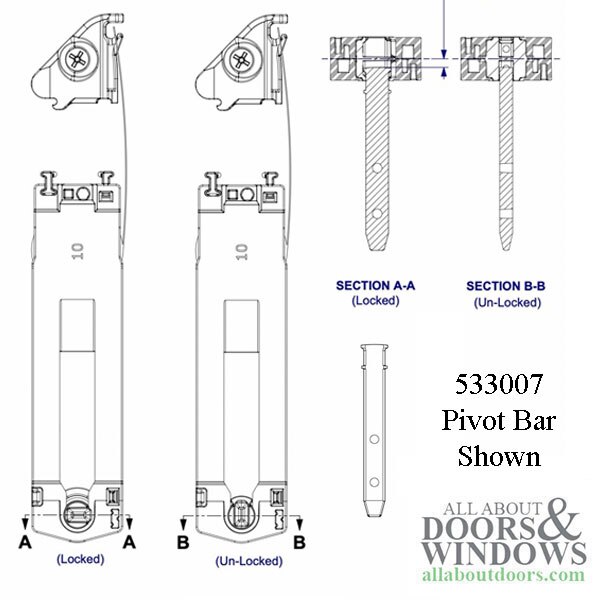

NOTE: The mounting bracket # 536008 has one (1) screw hole, Bracket # 536009 has two (2) screw holes. The brackets are interchangeable.
