Rhino 50/92 Active 3-Point Hook Bolt , G-U / Ferco - Silver Ferguard

Rhino 50/92 Active 3-Point Hook Bolt , G-U / Ferco - Silver

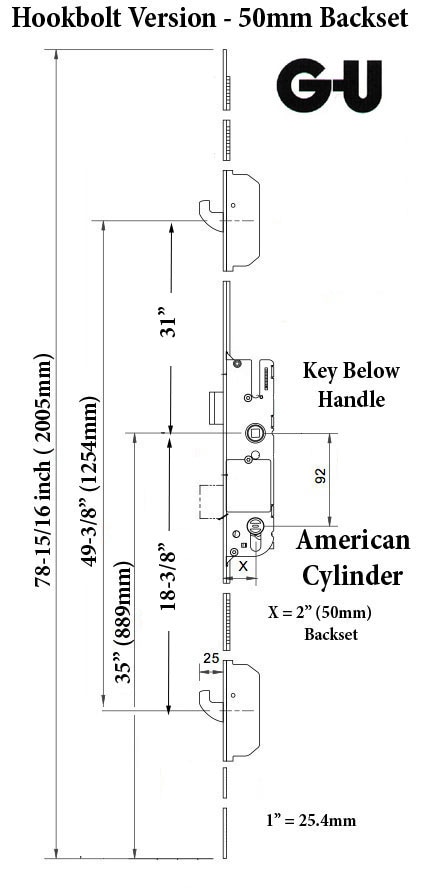

Specifications:

• Backset: 2 inch ( 50mm)
• Faceplate Width: 5/8 inch (16mm)
• Faceplate Finish: Silver Ferguard
• Handle / Cylinder PZ: 3-5/8 inches ( 92mm)
• Spindle: 5/16 inch (8mm) Square
• Handle Height: 35 inches ( 889mm)
• Overall Length: 78-15/16 inch ( 2005mm)
• Adjustable Top to add Additional Extensions for taller doors
• Cylinder Type: American with Flat Tailpiece
• Deadbolt Projection: 3/4 inch ( 20mm)
• Hookbolt Projection: 1 inch (25mm)
• Hookbolt Location, Bottom: 18-3/8 Inch ( 466.7mm) Center of handle to center of hook
• Hookbolt Location, Top: 31 inch (787.4mm) Center of handle to center of hook
• Hookbolt Spacing: 49 3/8 inches (1254mm) Centers

Numbers on orange label on lock case box:
6-33105-AT-0-0
50-92-8 = Backset - Handle Spacing - Spindle Diameter
