Replacement Kit for Discontinued Fuhr Roundbolt 55mm backset, 70mm handle spacing
This is a Tongue Version Multipoint Lock Replacement Kit for the Discontinued Fuhr Roundbolt Multipoint Lock (part 499014699) with a Backset of 55mm (2-1/4") and a Handle Spacing (PZ) of 70mm (2-7/8").
This Replacement Kit was developed for the above mentioned lock and will not work as a replacement for any other lock.
Please check your measurements carefully.
Discontinued Fuhr Roundbolt Measurements:
Overall Length: 77 inches (may vary)
Backset: 55mm (2-1/4")
Faceplate Width: 16mm (5/8")
Handle Height: 39-1/4"
Handle Spacing (PZ): 70mm (2-7/8")
Main Lock Body Length: 7-13/16"
Main Lock Body Width: 2-7/8\"
Roundbolt Gear Box Length: 5-1/8"
Roundbolt Gear Box Depth: 1-7/8"
Top Roundbolt Location: 29" above center of Handle Cylinder
Bottom Roundbolt Location: 29-3/4" below center of Handle Cylinder

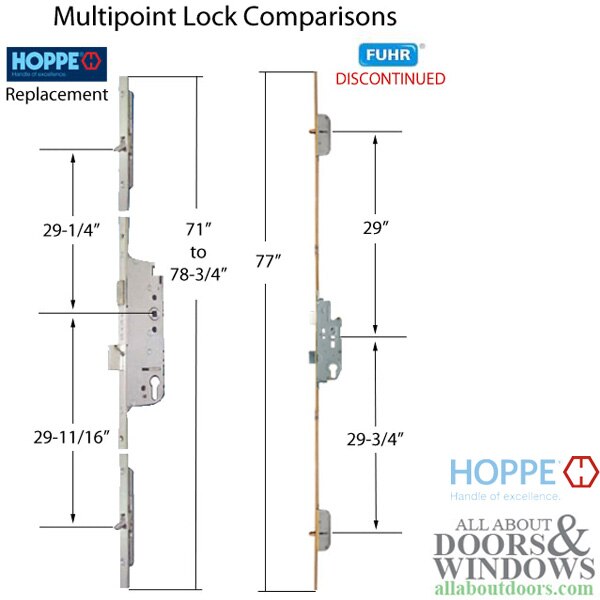

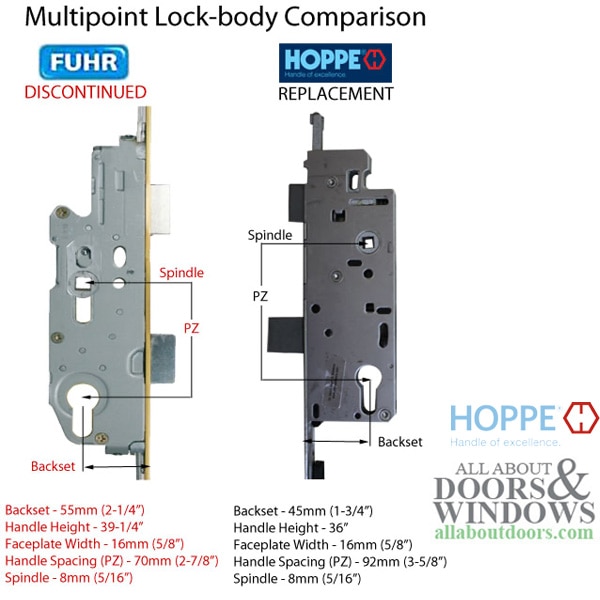

Replacement Kit Measurements:
Overall Length: 71" to 78-3/4"
Backset: 45mm (1-3/4")
Faceplate Width: 16mm (5/8")
Handle Height: 36"
Handle Spacing (PZ): 92mm (3-5/8")
Lock Body Length: 7-5/16"
Lock Body Depth: 2-1/2"
Top Tongue Location: 29-1/4" above center of Handle Cylinder
Bottom Tongue Location: 29-11/16" below center of Handle Cylinder
NOTE: Due to the uniqueness of the Discontinued Fuhr Roundbolt Lock, the easiest replacement can be quite an undertaking.
A complete replacement will require you to change or replace your Strikes and Handles.
Your door jamb will also require modifications, such as relocating the new Deadbolt and Spring Latch Strikes as-well as the new Locking Device Strikes.
To replace this lock, please read:
Guide to Replacing FUHR Roundbolt Multipoint Lock
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Attaching HOPPE Multipoint Lock Top Extension
Rehanding a Hoppe HLS9000 Multipoint Lock
