Replacement Kit for 76.3 - 80.3 inch Fuhr Shootbolt Multipoint Lock, 39-1/2 inch Handle Height

Part Number: 4990235-KIT
Price: $237.54

This is a Shootbolt Version Replacement Kit for the Discontinued OLD STYLE Shootbolt Multipoint Lock with a Handle Height of 39-5/8 inch and a Backset of 35mm.

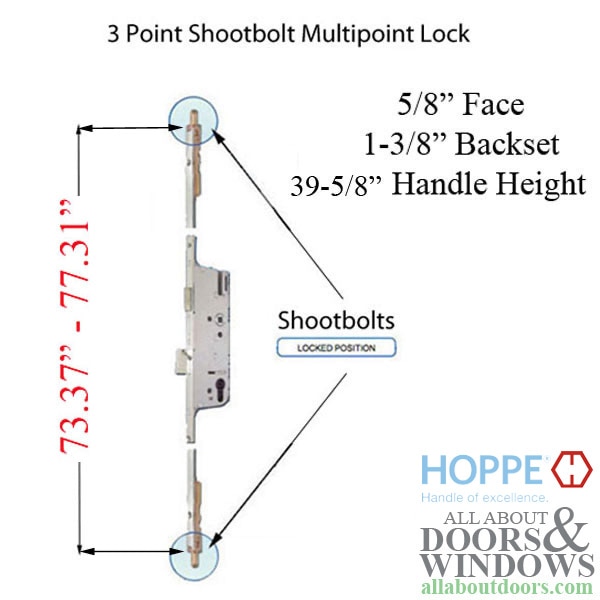

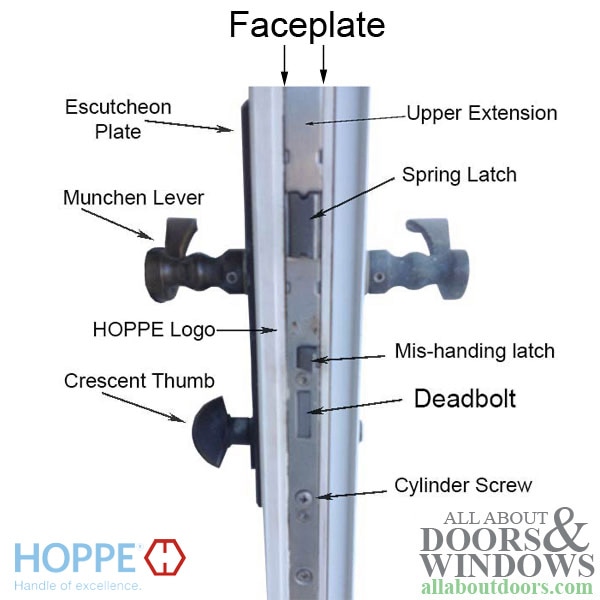

The Replacement Kit lock features 2 Shootbolts, and a Deadbolt.
The Shootbolts are located at both extreme ends of the lock.

Please check your measurements carefully to insure you have the correct replacement.

Discontinued Lock Measurements:
Overall Length: 76.3 - 80.3 inch (lengths may vary)
Backset: 35mm (1-3/8)
Faceplate Width: 16mm (5/8)
Handle Height: 39-5/8 (1006.5mm)
Handle Spacing (PZ): 92mm (3-5/8)
Spindle Diameter: 8mm (5/16)

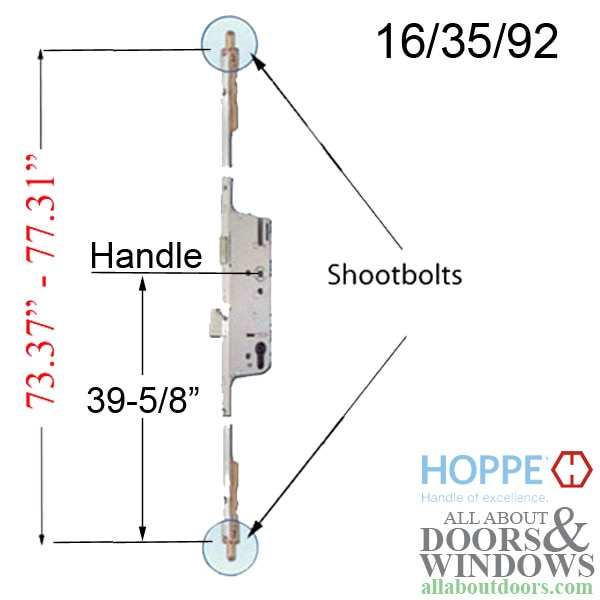

Shootbolt Positions: Located at the extreme ends of the lock.
Shootbolt Throw: 3/4

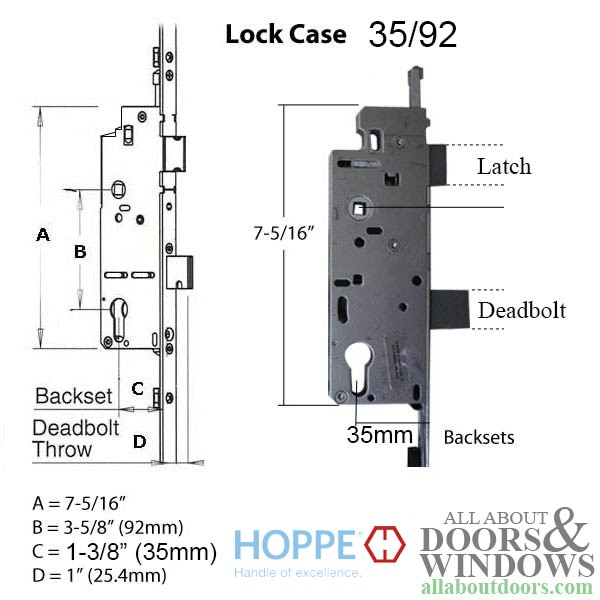

Replacement Kit Measurements:
Overall Length: fits doors 76.3 - 80.3 inch
Backset: 35mm (1-3/8)
Overall Faceplate Length: fits 76.3 - 80.3 inch ( when assembled)
Backset: 1-3/8 inch (35mm)
Deadbolt Throw: 1" (25.4mm)
Faceplate Width: 5/8 (16mm)
Handle Height (HH): 39-5/8 inch (1006.5)
Handle-Cylinder Spacing (PZ): 3-5/8 inch (92 mm)
Spindle Diameter: 5/16 inch (8 mm )
Shootbolts: At extreme top and bottom of lock
Shootbolt Throw: 3/4 inch (20mm)

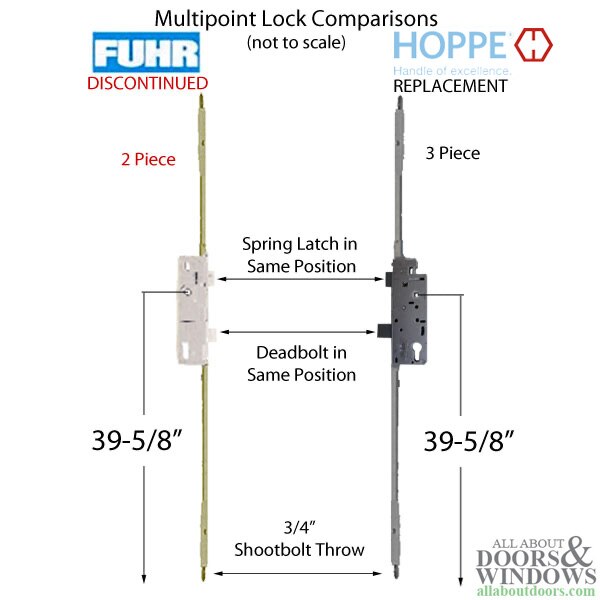

The critical measurements of these two locks are almost identical.
The complete lock when assembled fits a maxiimum 77-3/8 inch tall door.
The top extension can be cut down a maximum of 3.94 inches, resulting in minimum height of 76.3 inches.
For more information on cutting down extensions see our article.

Kit is priced and sold as a package.
8779263 - 16mm Gear - 35/92, 39-5/8 H.H. ( standard is 36 )
2424114 - 16mm Middle Extention - (17-3/8)
8778619 - 16mm Top Extension (21.65) for doors 76.3 - 80.3
2875118 - Cover Plate (1)
8785695 - Screws (13)

Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Video: How to Connect a Top Extension to HOPPE Lockbox
Article: How to Trim HOPPE Multipoint Locks

This kit will replace old SNE, Crestline, Fuhr and Hoppe HLS200 series with the same measurements
