16mm Manual Gear, 35/92 Shootbolt, 1" Deadbolt, 39.62 Handle Height

Part Number: 8779263
Price: $153.08

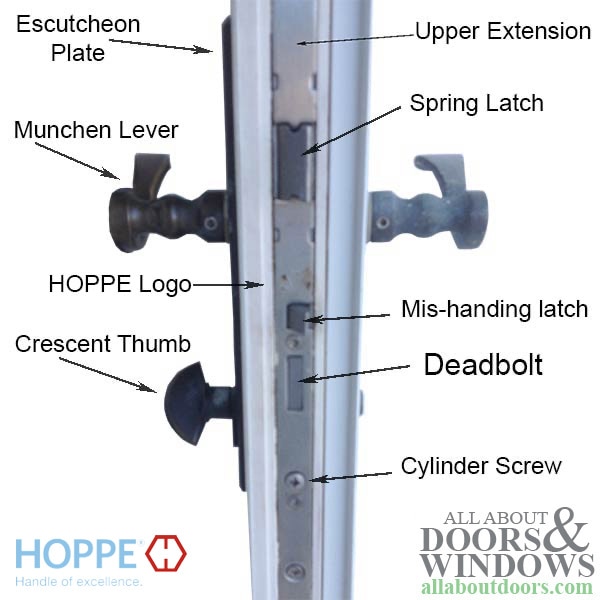

Hoppe Bottom Gear, HLS9000 Shootbolt Version, Manual Locking for Active Door.
Special handle height of 39-5/8 inches (1006mm)
Normally used for special applications like patio and pool gate doors, etc

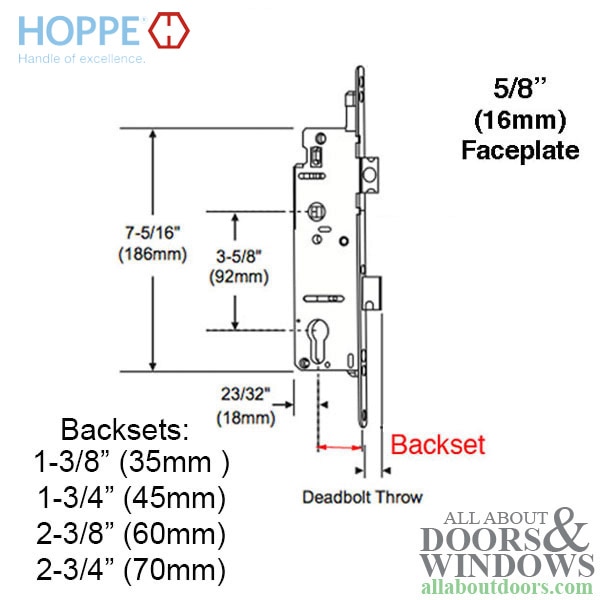

Faceplate Width: 5/8 inch (16mm)

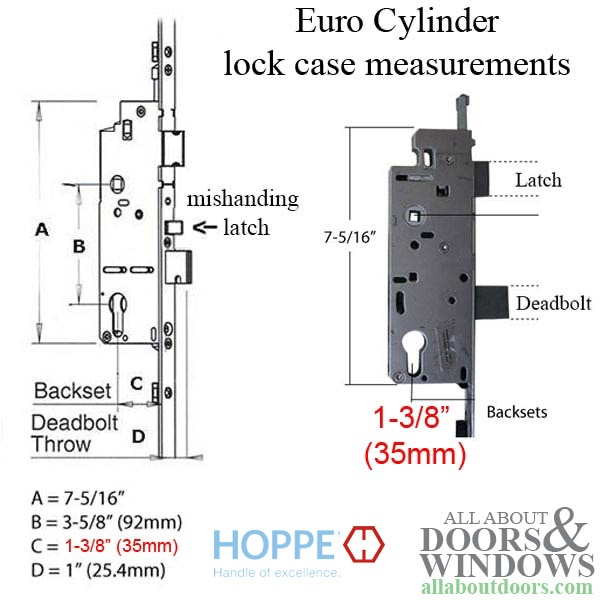

Backset: 1-3/8 inch (35mm)
Deadbolt Throw: 1 inch (25mm)

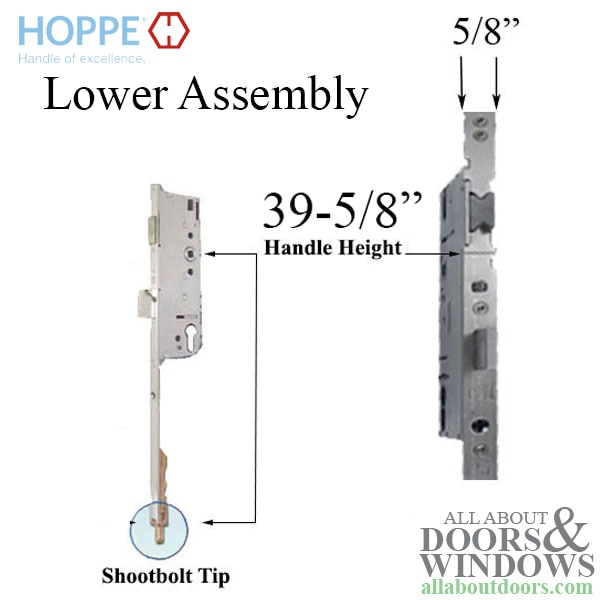

Handle Height: 39-5/8 inch (1006mm)

Related Shootbolt Parts:
Active Doors - 16mm, 39-5/8 inch Shootbolt, 1-3/8 Backset
8779259 - Lower Assembly with 1/2 inch ( 14mm) deadbolt Throw
8779263 - Lower Assembly with 1 inch ( 25.4mm) deadbolt Throw
2424114 - Middle Ext. (17.36") for SHORT Doors
8778619- Top Shootbolt Tip, Depends on door height ?? 73.3" - 77-1/4 # 4990235 kit
8778623 - Top Shootbolt Tip, Depends on door height ?? 76.27" - 80.21
2875118 - Cover Plate
8785695 - Screws
