Quattro Hinged Security Screen Door Lock Handle Set with Mortise Lock

Quattro Hinged Security Screen Door Lock Handle Set with Mortise Lock

The Quattro hinged security screen door lock features a double keyed cylinder.
Includes an anti-jemmy, extra wide serrated locking bolt.
IsCompatible with industry standard door preparations.
Retrofits in place of the Tasman MK3 lockset.
Handed for Left or Right hand applications.

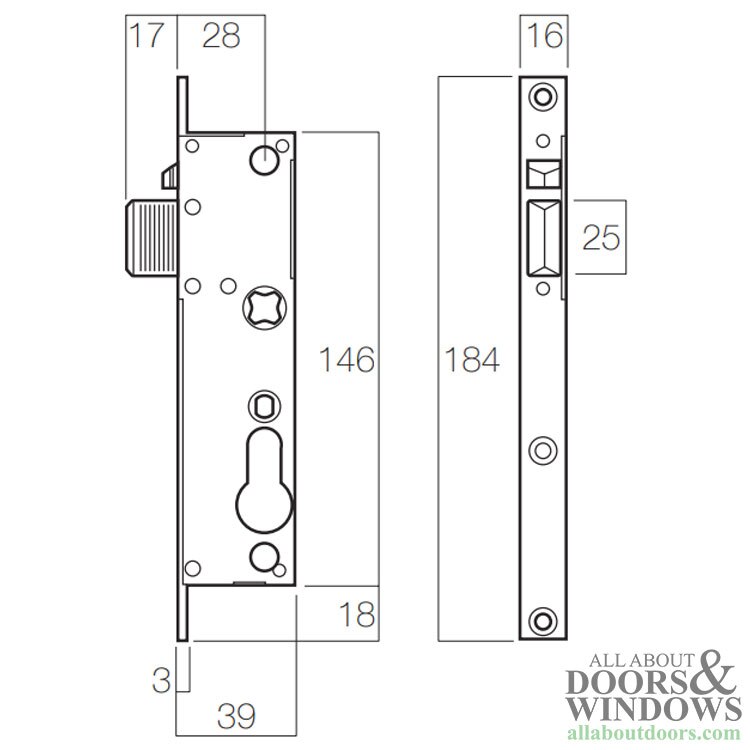

Mortise Lock Measurements
Backset: 1-1/8 inch (28mm)
Lock Body Width: 1-1/2 inch (38mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Length: 7-1/4 inches (185mm)
Faceplate Screw Hole: 6-3/4 inches . (173mm)

Handle Set Measurements
Escutcheon Plate Width: 1-1/4 inch (32mm)
Escutcheon Plate Length: 7-1/16 inch (180mm)
Escutcheon Plate Screws: 5-1/16 inch (127mm)
Base Material: Zinc

Available Colors/Finishes: Black

Priced and sold as a pack

Pack Includes:
1 Mortise Lock
1 Double Keyed Cylinder

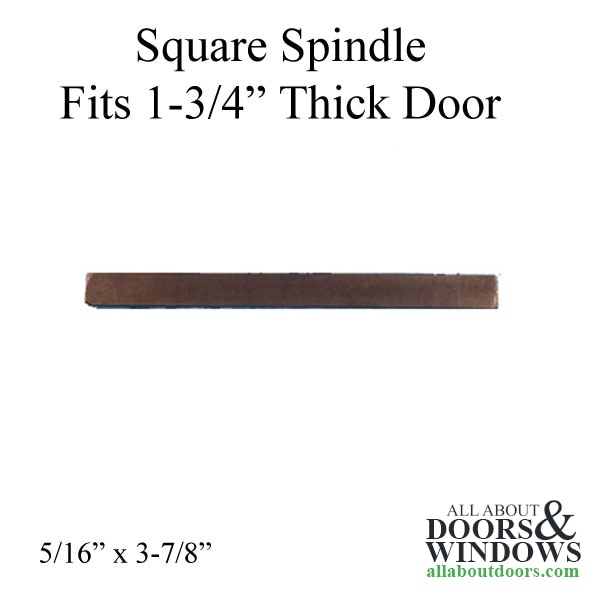

1 Spindle
2 Handles with Escutcheon Plates
1 Strike Plate
2 Screw Hole Plugs
2 Fixing Screws (12mm)
2 Furniture fixing Screws (25mm)
2 Strike Plate Screws (25mm)
1 cylinder Retainer Screw (32mm)
2 Keys
1 Instruction Sheet
