Privacy Spring Latch, 28° rotation 2-3/4 backset - No Faceplate

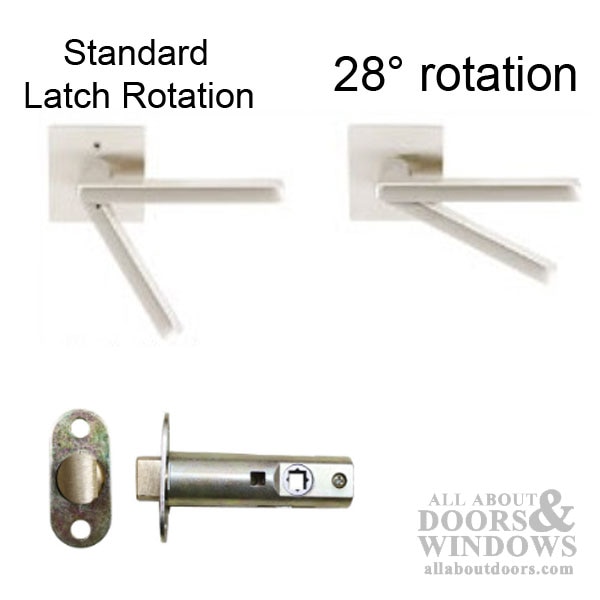

New Style Privacy latch with 28° rotation  to open door.

Replacement spring latch - Non-handed -  2-3/4 inch (70mm)  Backset

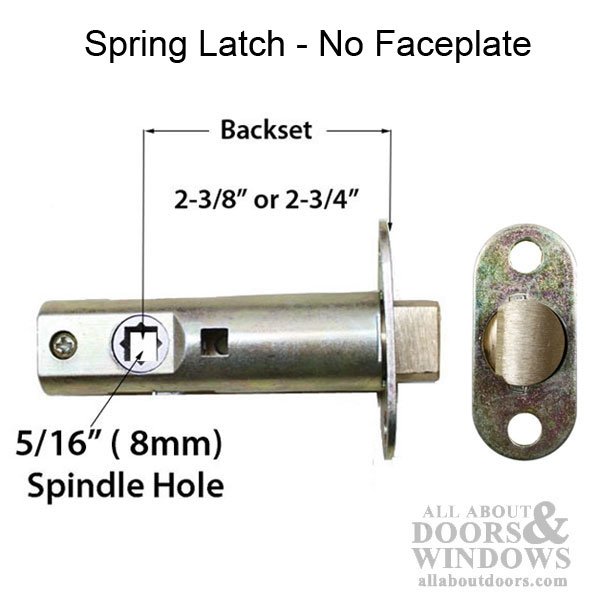

Latch Backset: 2-3/4 (70 mm)

Function: Spring latch with lockout for privacy

Spindle Diameter: 5/16 inch (8 mm) square hub

Door Type: Privacy,  bedroom or bathroom

Faceplate Finish:  Not Include, faceplate is sold separately

works with 1-3/8 or 1-3/4 inch thick doors

Non-Handed, fits left or right hand doors

Easy installation with typical screw driver

Priced and sold each.

Passage have a square hole - open through

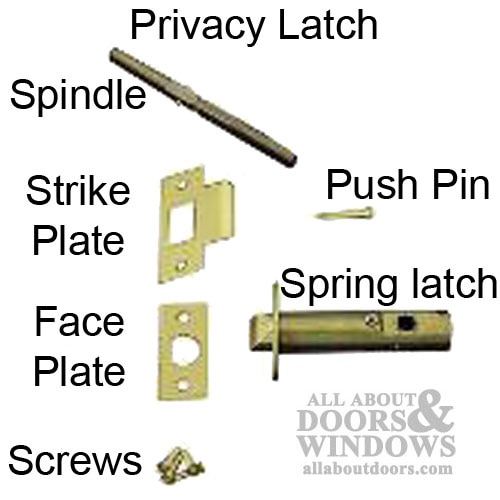

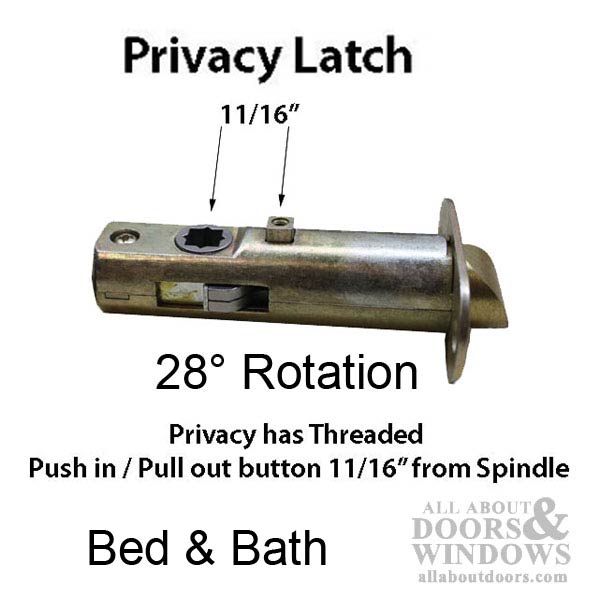

Privacy have a square hole with a plate in the middle &  privacy button.

Notes:

Available Backset: 2-3/8 (60 mm) or 2-3/4 (70 mm)

When ordering faceplate, choose color and corner as radius or square.

Optional Faceplate Colors: Polished Brass, Oil Rubbed Bronze, Brushed/Satin Nickel
