Privacy Latch 2-3/4 backset, 5/16" Hub, Square Face used with Levers
Privacy Latch with Heavy Duty Spring for Bed, Bath, or Closet Levers, 2-3/4 backset, 5/16" Hub, Directional Latch
Handed: Yes, The latch is directional and only pushes down. There is a top and bottom to the installation. Most latches have a directional sticker showing UP
Faceplate: Square Corner
Strike Plate: Square Corner, T-Strike

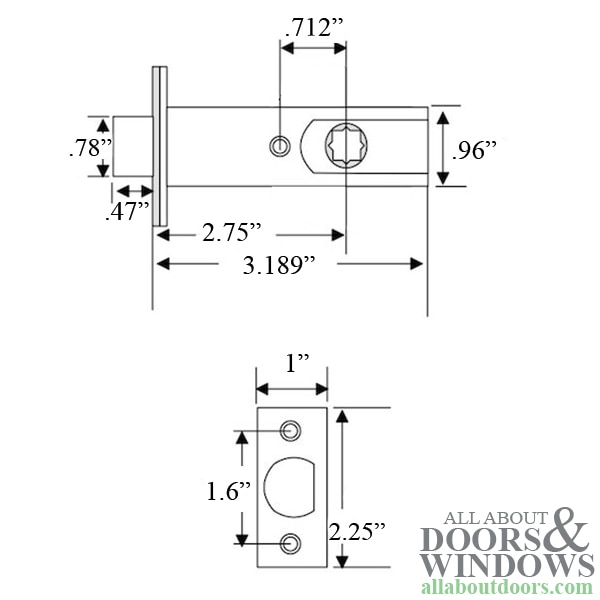

Backset: 2-3/4 inch (70mm)
Overall length: 3-1/2 inches (89mm) from faceplate
Faceplate Colors: Brass US3, Oil Rubbed Bronze US10B, Satin Nickel US15,
Special Order colors: Antique Nickel US15A, Antique Brass US5, Bronze US9
NOTE: This latch replaces Passage and Privacy Locks when eliminating the privacy pin
Handed: Yes, The latch is directional and only pushes down. There is a top and bottom to the installation. Most latches have a directional sticker showing UP
Faceplate: Square Corner
Strike Plate: Square Corner, T-Strike
Backset: 2-3/4 inch (70mm)
Overall length: 3-1/2 inches (89mm) from faceplate
Faceplate Colors: Brass US3, Oil Rubbed Bronze US10B, Satin Nickel US15,
Special Order colors: Antique Nickel US15A, Antique Brass US5, Bronze US9
NOTE: This latch replaces Passage and Privacy Locks when eliminating the privacy pin
