Pivot Bar, 3 inch, 4 hole Columbia / Boreal Vinyl Window - Zinc
SKU: 532049
$1.27 / Each
Details

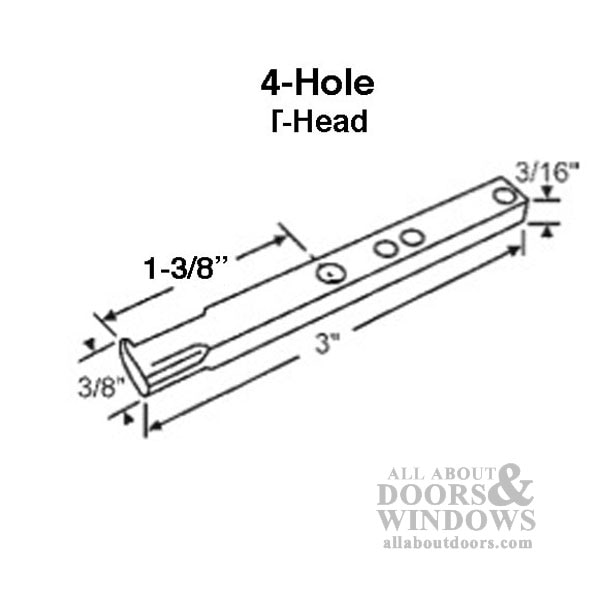

3 inch Transit head locking pivot bar zinc die cast construction
Used on Columbia, Jordan and Boreal vinyl single or Double hung window that also uses the wedge lock shoe or plastic housing
Head type: Transit (The head has a protrusion that locks into the balance block)
Number of holes: 4
Length: 3 inch
Width: 5/16 inch
Thickness: 3/16 inch
Material: Zinc
Markings: 275
Priced and sold each.
Related Parts

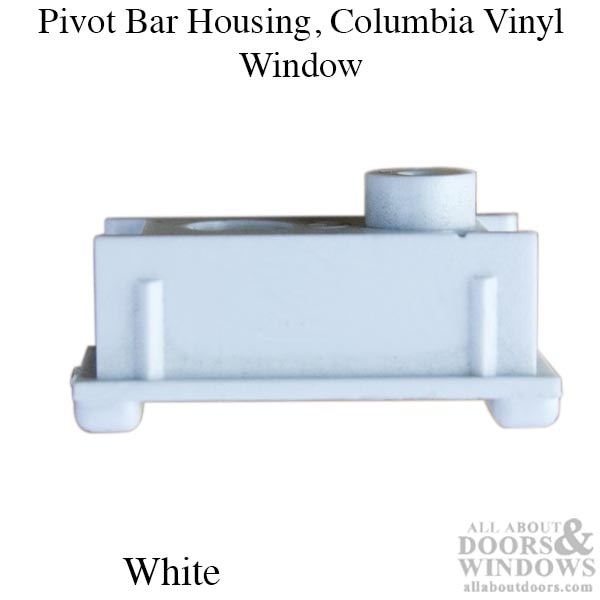

532048 - Pivot Bar Brake Shoe Housing
532049 - 3", 4 hole pivot bar
Used on Columbia, Jordan and Boreal vinyl single or Double hung window that also uses the wedge lock shoe or plastic housing
Head type: Transit (The head has a protrusion that locks into the balance block)
Number of holes: 4
Length: 3 inch
Width: 5/16 inch
Thickness: 3/16 inch
Material: Zinc
Markings: 275
Priced and sold each.
Related Parts
532048 - Pivot Bar Brake Shoe Housing
532049 - 3", 4 hole pivot bar
Additional Information
Similar to or same as the following
Strybuc 62-545
Amesbury 275 (501062)
Strybuc 62-545
Amesbury 275 (501062)
