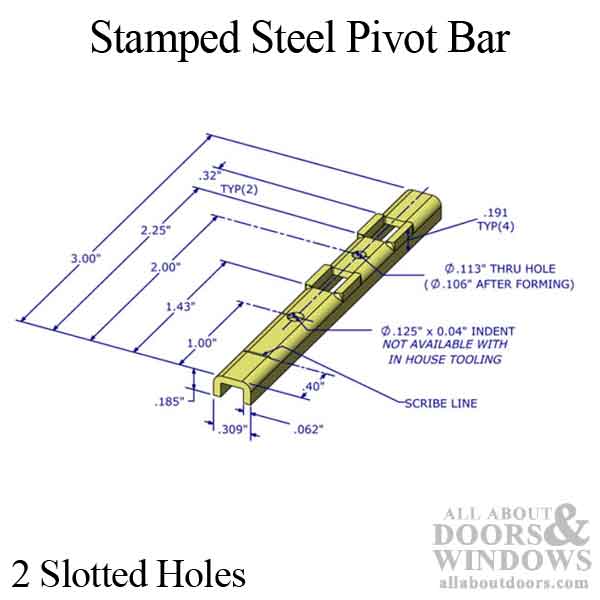

Pivot Bar, 3 ", 3 hole, Stamped Steel
3 inch stamped steel pivot bar
For use with tilt in windows.
Attaches to bottom of window and end fits into pivot block.
Used with 85 series tilt balance rod.
When the window tilts, the pivot bar locks the balance block to secure window in place.
Slotted holes: 2
Screw Holes: 1, uses #6 x 3/8 Screw ( Not included )
Length: 3 inch
Width: 5/16 inch
Thickness: 3/16 inch
Material: Stamped Steel
MOVING OR FIXED COILBoth
PIVOT BAR LENGTH3.00 Inches
FIRST HOLE LOCATION2.0 Inches
NUMBER OF HOLES1
SCREW INCLUDEDNo
SCREW SIZE#6
FINISHYellow Zinc Dichromate
HEAD TYPEU-Shaped
MATERIAL TYPEStamped Steel
