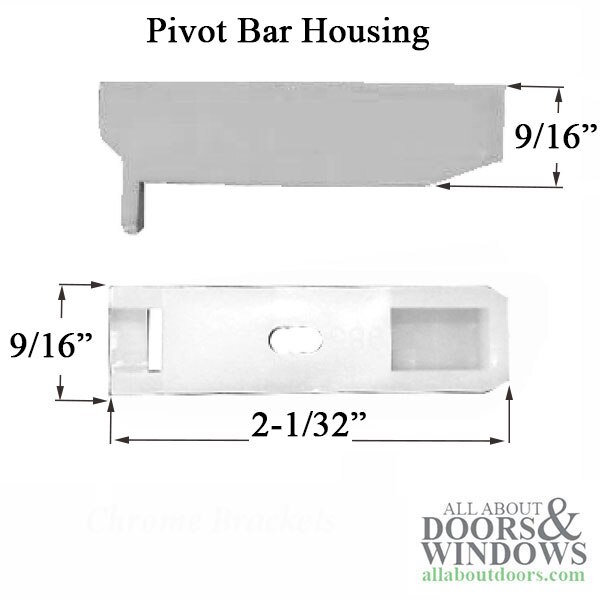

Pivot Bar Housing. Silverline Double Hung Vinyl window

Plastic Housing only for Silverline 8500 Series double hung vinyl window Also used on the American Craftsman Vinyl window sold by Home Depot.
Used a Steel pivot bar: 2-7/16 inches long by 5/16 inches wide by 3/16 inches thick # 532003

Overall Housing Length: 2-1/16 inches.
Housing Width: 9/16 inches
Housing Thickness: 5/8 inches
Material: Plastic
Housing Color: Translucent White

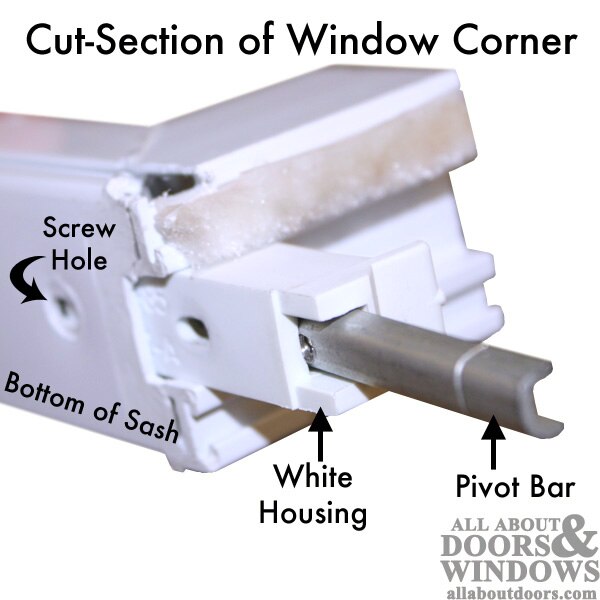

Note: To access pivot and housing, remove sash, remove screw on bottom of sash and pull out pivot bar first, then remove housing

These two parts are used as a replacement for 532044.
plastic housing 532046 is used with Steel Pivot bar 532003

Priced and sold each, No Pivot bar
Â
This part is a replacement for 532044.
