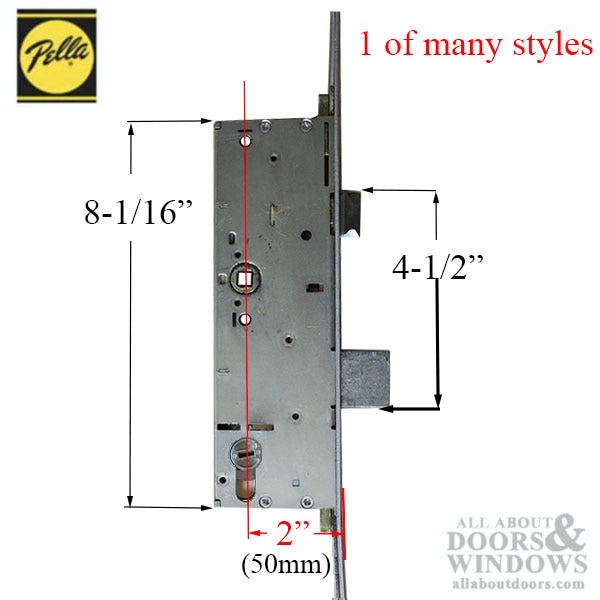

Pella Shootbolt 50/92, Pella Designer Series 904 Multipoint Lock, 93-1/4" Door

Pella Active panel Multipoint lock with Deadbolt and vertical locking shootbolts

Type: 3-point lock with Deadbolt and  vertical locking shootbolts

Faceplate Width: 5/8 inch (16mm)

Faceplate Length: 93-1/4 inch ( 2368mm)

Backset: 2 inch (50mm)

Deadbolt Throw: 1 inch (25.4mm)

Handle Height: 35 inch  (889mm)

Markings: Pella  904 on Faceplate

Replace with G-U / Ferco  50/92 + 500mm Extension

Pella Replacement Options:

1.  Pella Original Replacement

     Pella needs picture of door and frame size to order Pella MPL or Serial Number

2. G-U / Ferco  16/50/92  35" HH 2 piece lock, can be cut to size for door height

    G-U  latch and deadbolt are off less than 1/16 inch, lock case is slightly smaller. This replacement is what Pella  used before this model of Multipoint Lock

 For G-U Replacement, Doors up to 81 inches tall  See # 4990330-KIT

 Doors over 81 inches up to 100 inches need an extension See # 40325

SPECIAL NOTE: Original Pella is a special order and may take 2-4 weeks. Pella wants unit size, pictures of the door and Serial number on glass to ID MPL
