Peachtree Ariel 22-1/4-3 Channel Balance, 2454, 3054 Non-Tilt Window

Peachtree Ariel window special channel balance.
Used ONLY on non-tilt Peachtree Ariel windows with an aluminum outside and a wood inside.

The Width & Height of the window is the call size
D3054 was 30 inches wide and 54 inches tall

IMPORTANT
Stamped Number: Please double check all measurements and ensure your old balance has this number stamped on it. (see images)
Number stamped on balance indicates unit size and weight.
Number stamped on this balance: 22-1/4-3

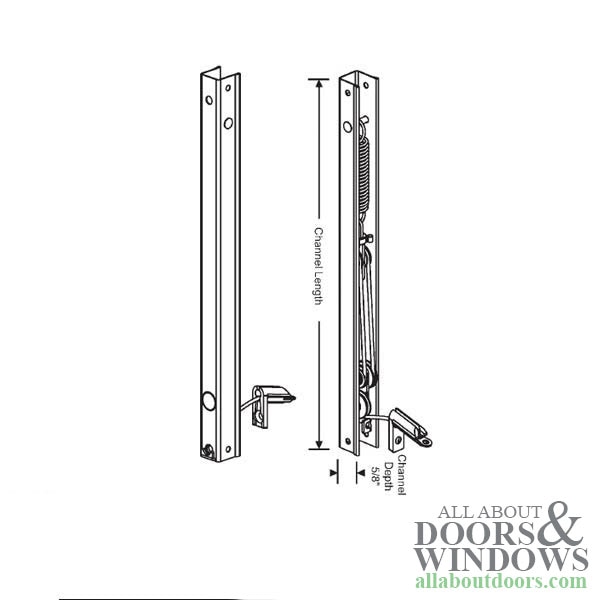

The Channel Balance Length is 1 inch more than the number stamped on balance.

Channel Balance Length: 23-1/4 inch
Weight Capacity: 13 to 19 pounds
Peachtree Call Size: D3054
Priced and sold each.

Other Peachtree Ariel Windows: 30" Width
D3036
D3040
D3048
D3054
D3060
D3072

Peachtree Ariel Single Hung windows have been discontinued,
Some balances may not be available.
Best if replaced in pairs,
Old balances can be reused as a pair, but it is unsafe to mix old balances with new ones.

NOTE:
Channel balance is screwed to window and plastic end on cord goes into frame.
Sash needs to be removed to replace channel balance.
See Instructions here.
