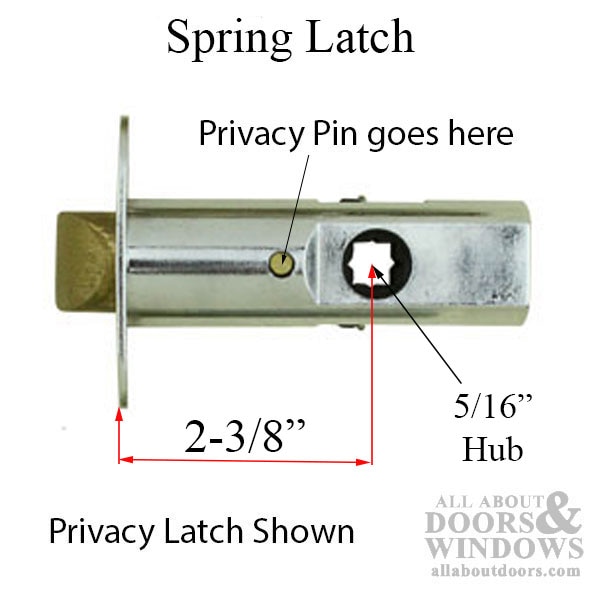

Privacy Lever Latch, 2-3/8" backset, 5/16" Hub
Privacy Latch with HD Spring for Levers, 2-3/8 backset, 5/16" Hub, Directional Latch
Replacement lever latch for Cifial, Hoppe and other Passage or Privacy locks.
Handed: No, reversible for LH and RH
Faceplate: Square Corner
Strike Plate: Square Corner, T-Strike
Backset: 2-3/8 inch (60mm)
Spindle Hub Diameter: 5/16 inch (8mm)
Overall length: 3-3/16 inches (81mm) from faceplate
Tongue color: Nickel
Faceplate Colors: Polished Brass US3, Oil Rubbed Bronze US10B, Satin Nickel US15,
Special Order colors: Antique Nickel US15A, Antique Brass US5, Bronze US9
Note 1:
The privacy latch will work for Passage or Privacy when eliminating the Privacy Pin, install provided brass screw when using as passage
Note 2:
The Privacy function has an anti-lock feature. Depressing the latch bolt by strike when door is closing, or operating the inside Knob/Lever unlocks the latch. Push in Privacy Pin to lock
Note 3:
Backset is measured from the face of the latch to the center of the Spindle Hub.
Note 4:
T-Type strike plate is standard, Other strikes available at an additional charge
