P2000 Active 60/92 Gearbox Only American Cylinder - No Faceplate
Gearbox has a deadbolt and spring latch only - It is NOT a Multipoint lock (MPL), and does not have a faceplate.
This mortise Lock case will replace the active gear box on Amesbury MPL with the same size and configuration.
Amesbury has 3 different locks - Please compare measurements & Information

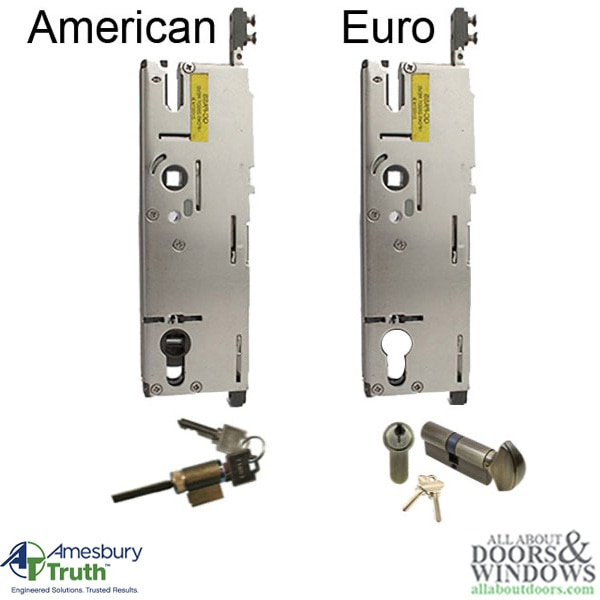

Cylinder Type: American

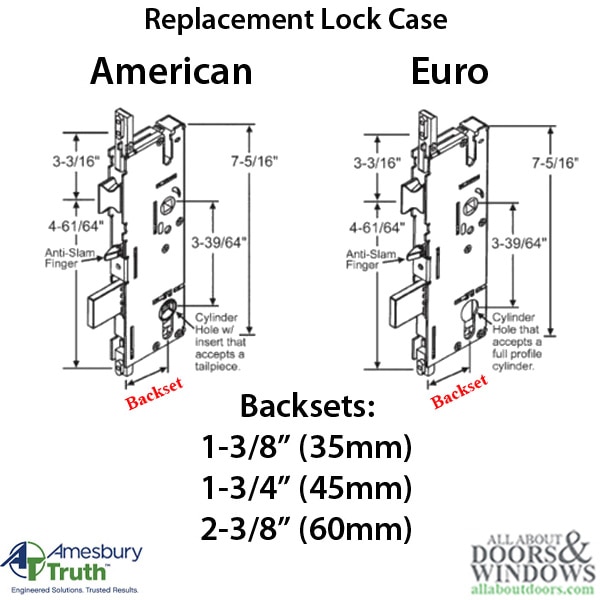

Backset: 2-3/8 inch (60mm)
Handle PZ: 3-5/8 inch ( 92mm)
Deadbolt Throw: 1 Inch (25.4mm)
Faceplate Width: NONE
To Change Handing / Latch Reversal:
1. Extend Deadbolt and pull spring latch out
2. Rotate to correct position
3. Check function of lock before closing door
The T-20 torx Star bit screws require 12-13 pounds of torque
