Optimum Long Throw 4-Point Door Lock

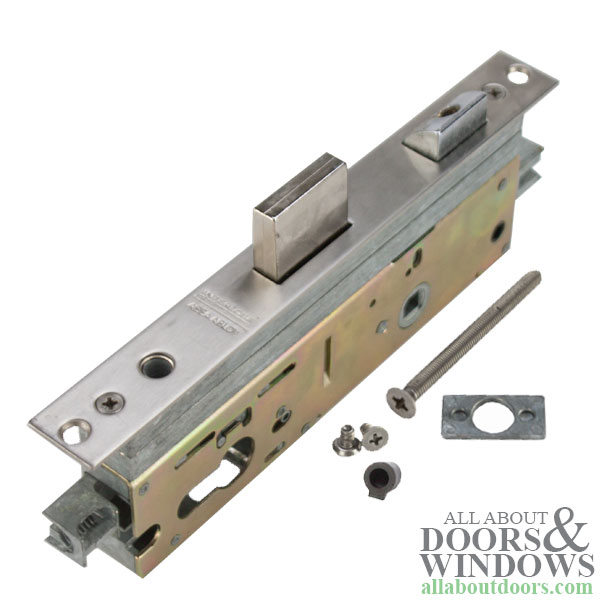

Interlock Optimum hinged door 2-4 point mortise lock with 2 inch backset. Used by many aluminum door manufacturers, and to replace damaged or missing mortise lock in hinged doors. When deadbolt is extended the spring latch becomes rigid and creates another locking point.
Model: Optimum
Backset(s) Available: 30, 40, and 50 mm

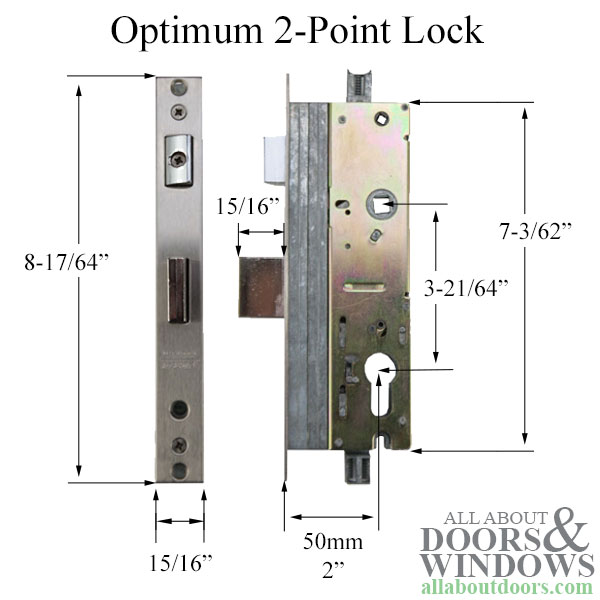

Handle to Cylinder PZ: 3-5/16 inch (85mm) 3.346
Deadbolt Throw: 15/16” (24mm) .0945
Faceplate Width: 15/16 inch (24mm) 0.945
Faceplate Length: 8-1/4 inch (210mm) 8.268
Spindle Hub: 5/16 inch (8mm) 0.315
Markings: Interlock Assa Abloy
Material: Zinc, Steel, Stainless Steel
Model: Optimum
Backset(s) Available: 30, 40, and 50 mm
Handle to Cylinder PZ: 3-5/16 inch (85mm) 3.346
Deadbolt Throw: 15/16” (24mm) .0945
Faceplate Width: 15/16 inch (24mm) 0.945
Faceplate Length: 8-1/4 inch (210mm) 8.268
Spindle Hub: 5/16 inch (8mm) 0.315
Markings: Interlock Assa Abloy
Material: Zinc, Steel, Stainless Steel
DL01-6061 = 30mm
DL01-6063 = 40mm
DL01-6065 = 50mm
DL01-6014 = 35mm Long Face
Operation: Push handle down to retract latch. Throw deadbolt with key or thumbturn and the spring latch also becomes a locking point.
To Change Handing: Remove screw in latch, rotate latch, reinstall screw
DL01-6063 = 40mm
DL01-6065 = 50mm
DL01-6014 = 35mm Long Face
Operation: Push handle down to retract latch. Throw deadbolt with key or thumbturn and the spring latch also becomes a locking point.
To Change Handing: Remove screw in latch, rotate latch, reinstall screw
