Operator, Type 2 Awning Window, Nu-Aire LH 5-1/8

Part Number: 56719
Price: $16.79
Awning window operator for Nu-Aire windows
1 hole at top, 2 holes at bottom
Case-hardened steel gears
Baked enamel finish
Aluminum
Comes with crank handle, 3/8 spline.

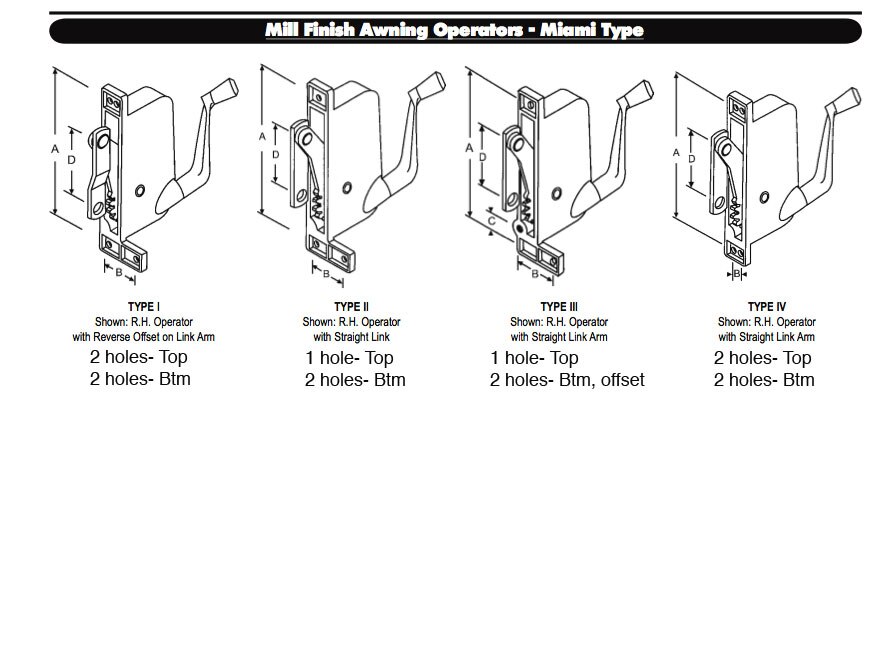

Housing Type 2 , A=5-1/8. B= 15/16, C= n/a, D=2-5/8

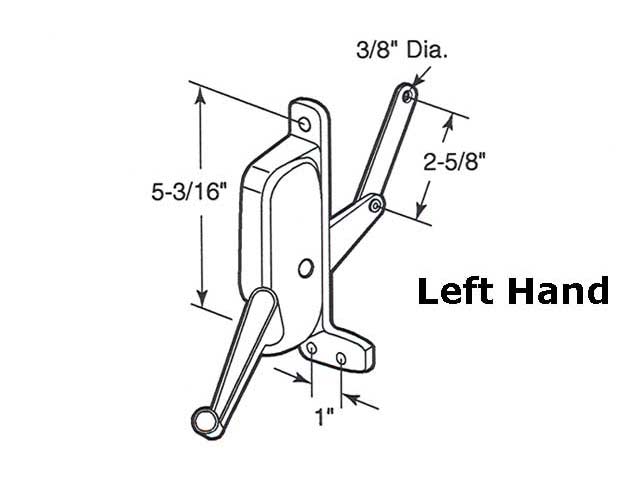

Straight Link w/ 3/8 hole (see third picture)
Housing Type 2: One hole at top, two holes Bottom
Sold Each

Handing: Left
Material: Mixed Materials
Hole Center: 5-1/8 inch
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: H 3695
Strybuc Industries: 41-264P
