Duo Latch Inside Handle Storm Door
This item has been Discontinued and limited to existing inventory.
For a New Style Replacement see part 304004

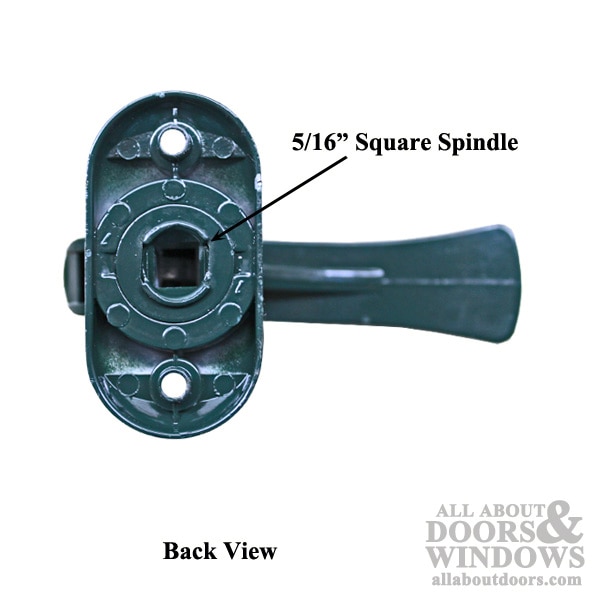

Old Style Interior Duo Latch Storm Door Handle with 5/16 Inch Square Spindle
Available Colors: Green
Old Style Interior Duo Latch Storm Door Handle with 5/16 Inch Square Spindle in 3 Colors.
New Style (304004) replaces this Old Style with oval base and pivot and push lever.
The 5/16 inch spindle may be held in place with a 3/32 inch hex head screw set.
Some doors may require cutting the spindle shorter.
You may view the Installation Guide here .

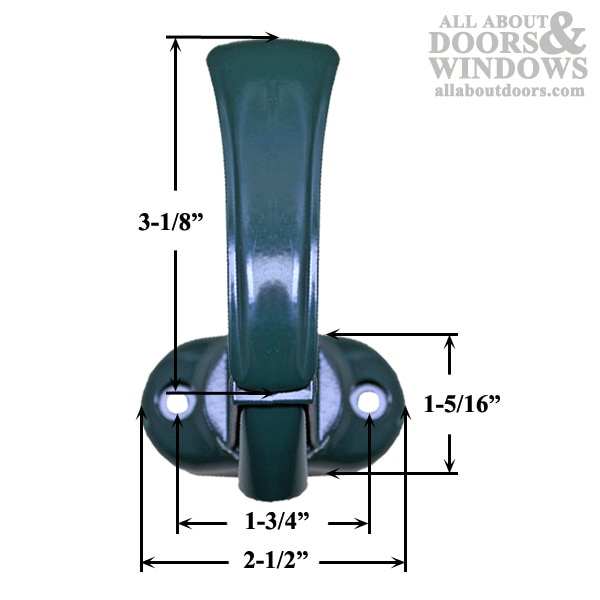

Base Length: 2-1/2 Inch
Base Width: 1-5/16 Inch
Handle Length: 3-1/8 Inch
Screw Center: 1-3/4 Inch
Spindle Diameter: 5/16 Inch
Priced and Sold Each.
For a New Style Replacement see part 304004
Old Style Interior Duo Latch Storm Door Handle with 5/16 Inch Square Spindle
Available Colors: Green
Old Style Interior Duo Latch Storm Door Handle with 5/16 Inch Square Spindle in 3 Colors.
New Style (304004) replaces this Old Style with oval base and pivot and push lever.
The 5/16 inch spindle may be held in place with a 3/32 inch hex head screw set.
Some doors may require cutting the spindle shorter.
You may view the Installation Guide here .
Base Length: 2-1/2 Inch
Base Width: 1-5/16 Inch
Handle Length: 3-1/8 Inch
Screw Center: 1-3/4 Inch
Spindle Diameter: 5/16 Inch
Priced and Sold Each.
