Non-Handed Diecast Outside Pull with Knockout Plug for Sliding Patio Door - Choose Color
Non-handed diecast outside pull with knockout plug for sliding patio door in 3 colors.
This sliding patio door pull improves the grip for open door from the outside.

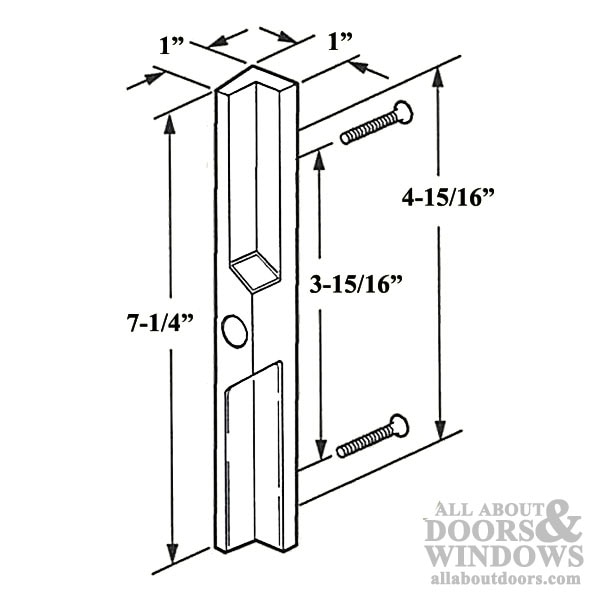

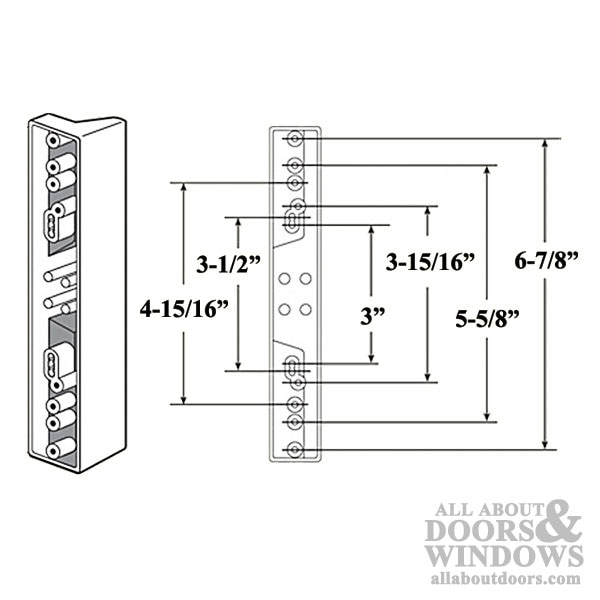

The 3-15/16 inch hole centers work with other universal type door handles.
The 4-15/16 inch hole pattern is offset 1/8 inch from center line to work with Adams Rite, W&F and similar type mortise latches.
This outside handle has a knock out, if keyed cylinder needs to be added. Drill out, 1/2 inch diameter. May need to clean burrs
Length: 7-1/4 Inch
Width: 1 Inch
Depth: 1 Inch
Screw Center: 3-15/16 Inch or 4-15/16 Inch
Handle Type: Outside
Hole Center: Adjustable
Material: Diecast
Finish: Painted
Available Colors:
Black
White
Contents: 1 Diecast Pull
Priced and sold each.
Note: The circular indentation in this handle can be punched out so a keyed cylinder can be installed. We have a video tutorial to show you this process. - Some do not punch out and can be drilled with 1/2 diameter metal bit/
Related Parts:
14109 - Outside Pull wtih key cylinder, Weiser keyway, multi-screw hole pattern
This sliding patio door pull improves the grip for open door from the outside.
The 3-15/16 inch hole centers work with other universal type door handles.
The 4-15/16 inch hole pattern is offset 1/8 inch from center line to work with Adams Rite, W&F and similar type mortise latches.
This outside handle has a knock out, if keyed cylinder needs to be added. Drill out, 1/2 inch diameter. May need to clean burrs
Length: 7-1/4 Inch
Width: 1 Inch
Depth: 1 Inch
Screw Center: 3-15/16 Inch or 4-15/16 Inch
Handle Type: Outside
Hole Center: Adjustable
Material: Diecast
Finish: Painted
Available Colors:
Black
White
Contents: 1 Diecast Pull
Priced and sold each.
Note: The circular indentation in this handle can be punched out so a keyed cylinder can be installed. We have a video tutorial to show you this process. - Some do not punch out and can be drilled with 1/2 diameter metal bit/
Related Parts:
14109 - Outside Pull wtih key cylinder, Weiser keyway, multi-screw hole pattern
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: C 1096, C 1113, C 1114
Prime-Line Products: C 1096, C 1113, C 1114
